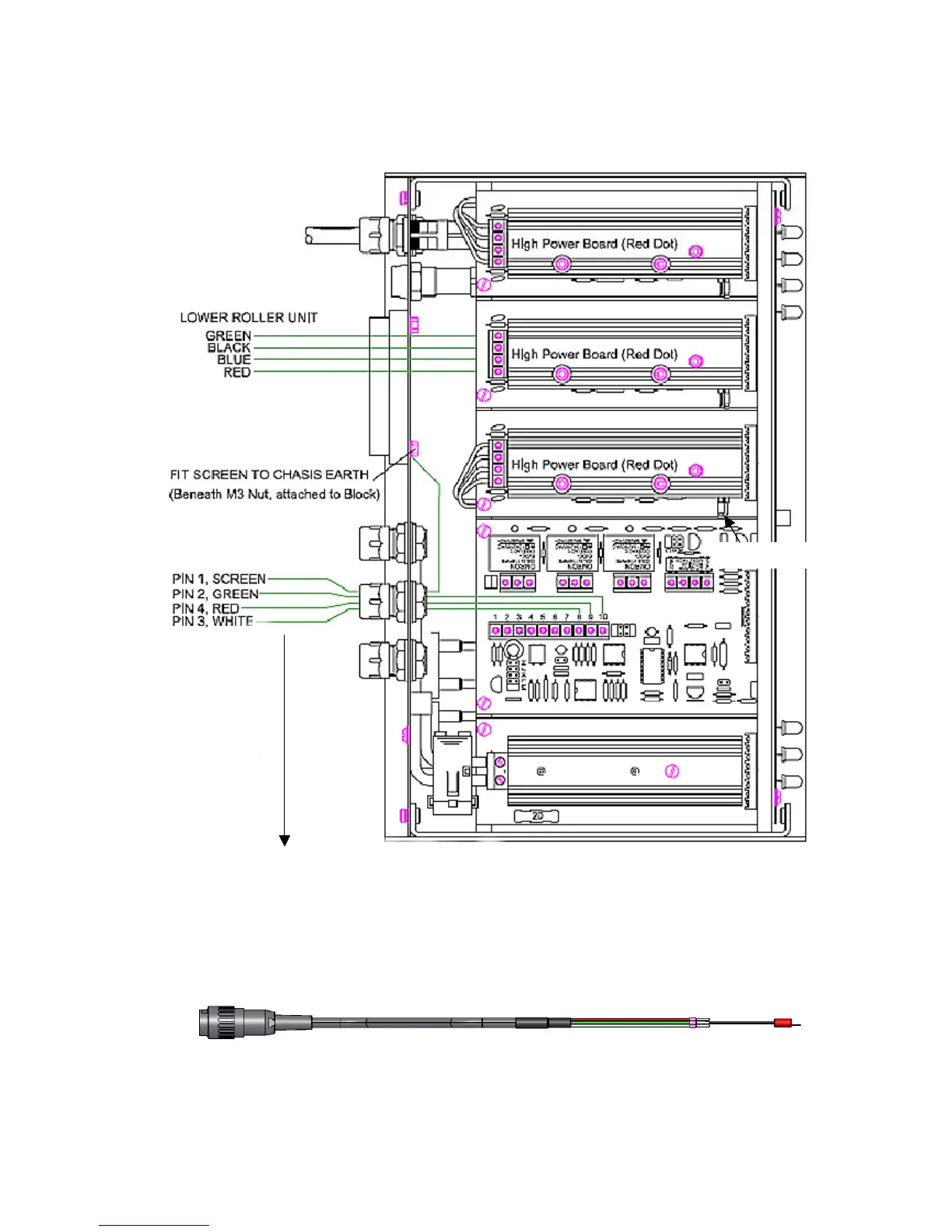

Power Supply Shaft Encoder & Lower Roller Unit Connections
Cable Assembly Part No. ASY 765188
Fitted with 8 Way Female Socket
Pin 1= Black (Screen), Pin 2 = Green, Pin 3 = White, Pin 4 =Red
Set to High Power
To Next Page
