Thermocode 2 Printer manual Version 2.04 January 2011 19
19
Encoder Type and Connections
Principle Engineering Kubler (Black &Orange) Scancon
Wire Colour Plug Pin No Wire Colour Plug Pin No Wire Colour Plug Pin No
Screen/Shield 1 & Case Screen/Shield 1 & Case Screen/Shield 1 & Case
Brown 2 Green 2 Pink 2
Black 3 White 3
Blue, Grey,
Brown, Yellow
3
White 4 Brown 4 Red 4
Note
Plug / Socket Pin 1 Connects to the power supply case (Screen)
Plug / Socket Pin 2 Connects to the power supply terminal 10 Signal
Plug / Socket Pin 3 Connects to the power supply terminal 8 0 Volts
Plug / Socket Pin 4 Connects to the power supply terminal 9 5 Volts DC
Encoder Make Model / Type Part Number & Plug

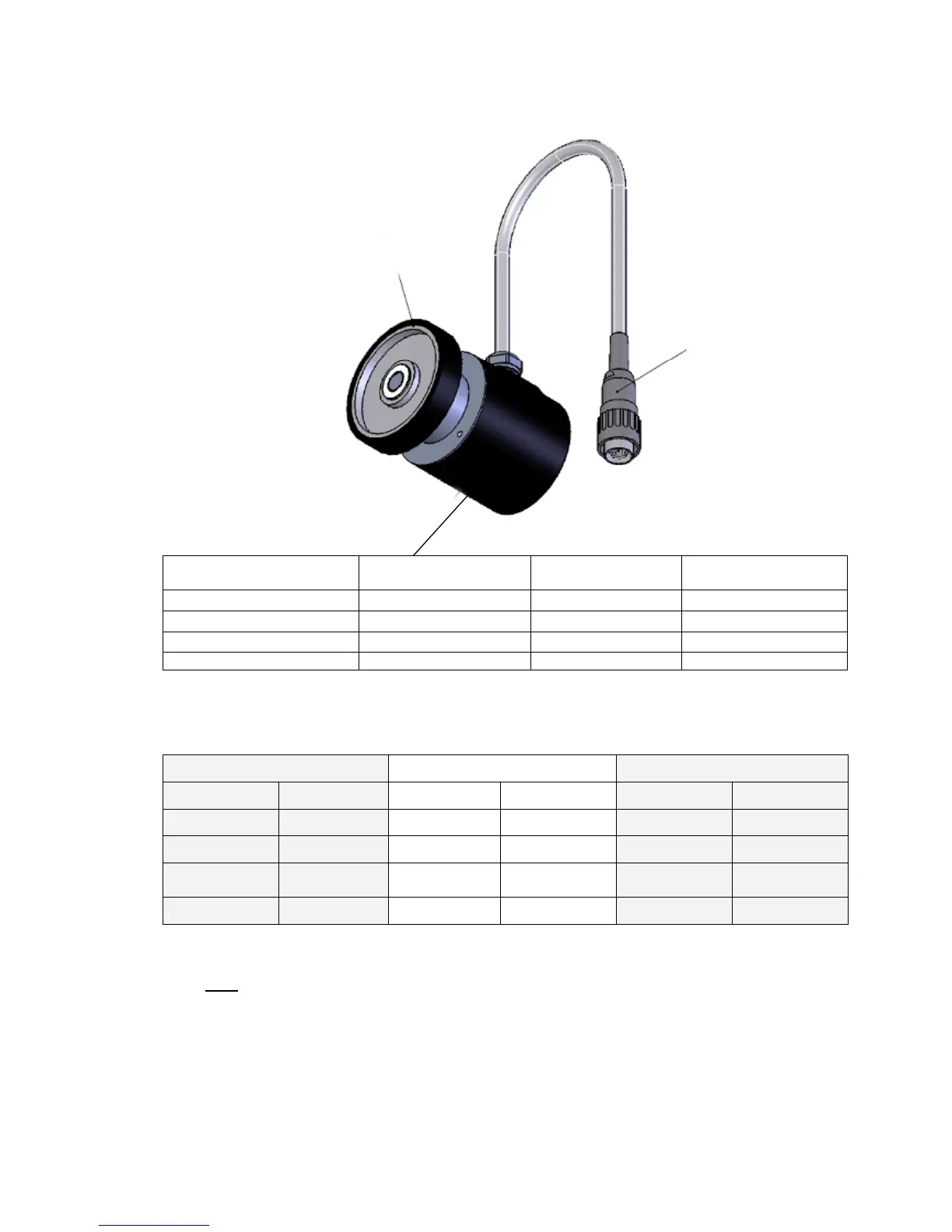

Encoder, Plug & Driver
Roller
Principle Engineering 758-58mm N/A ENC765304
Kubler (Black) 5820.1288.2400.0020
No longer supplied
Replaced with above
Kubler (Orange) 8.5802.128B.2400.0020
No longer supplied
Replaced with above
Scancon 2RK2400-606904 No longer supplied Replaced with above
Drive roller
5 Way Male - Plug
To Next Page
