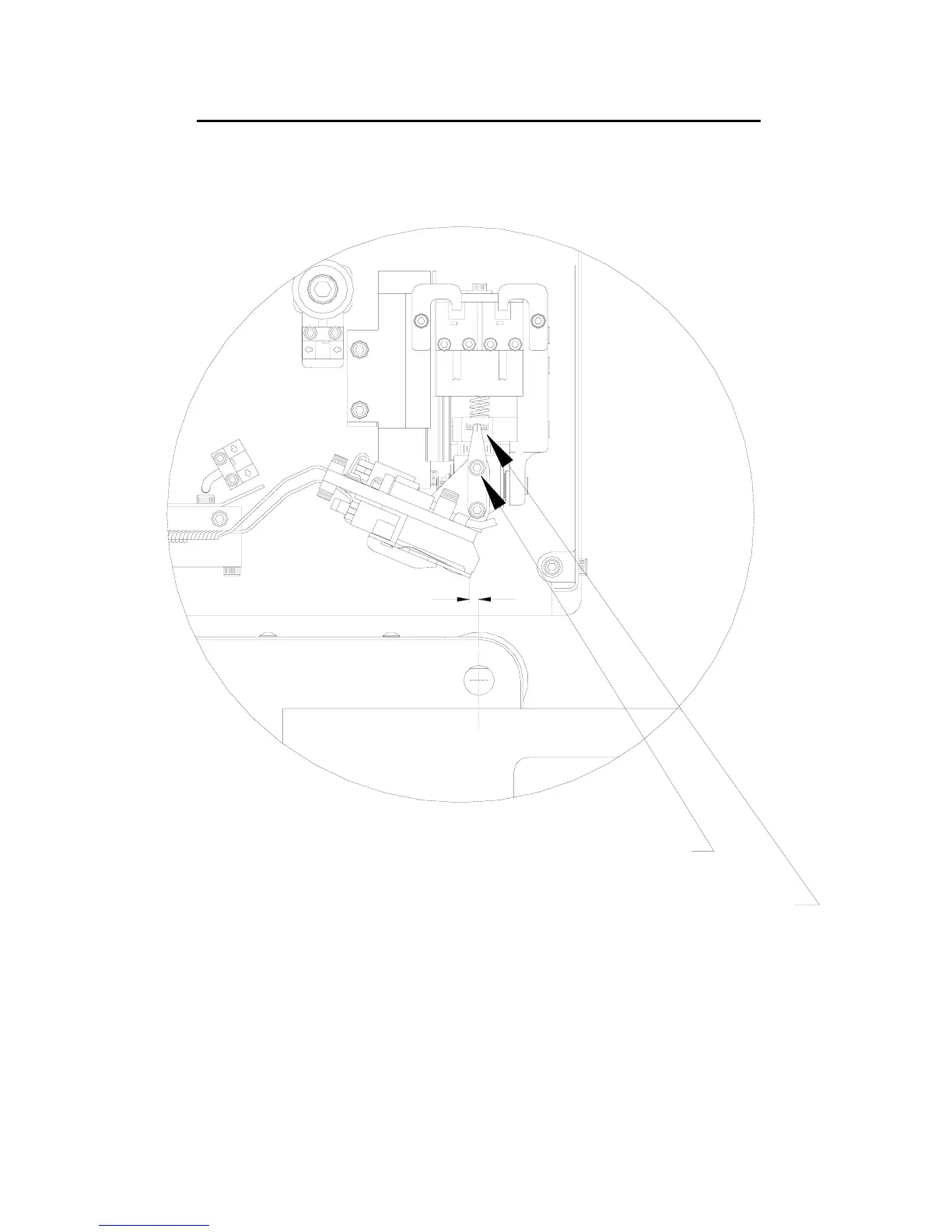

Enlarged View of Printhead and Pressure Roller Alignment
1.00 mm
CENTRE LINE ROLLER
PRINTHEAD LOCKING SCREWS
CHECK PRINTHEAD ANGLE
FIG 2a
