4.4 Assembly instructions

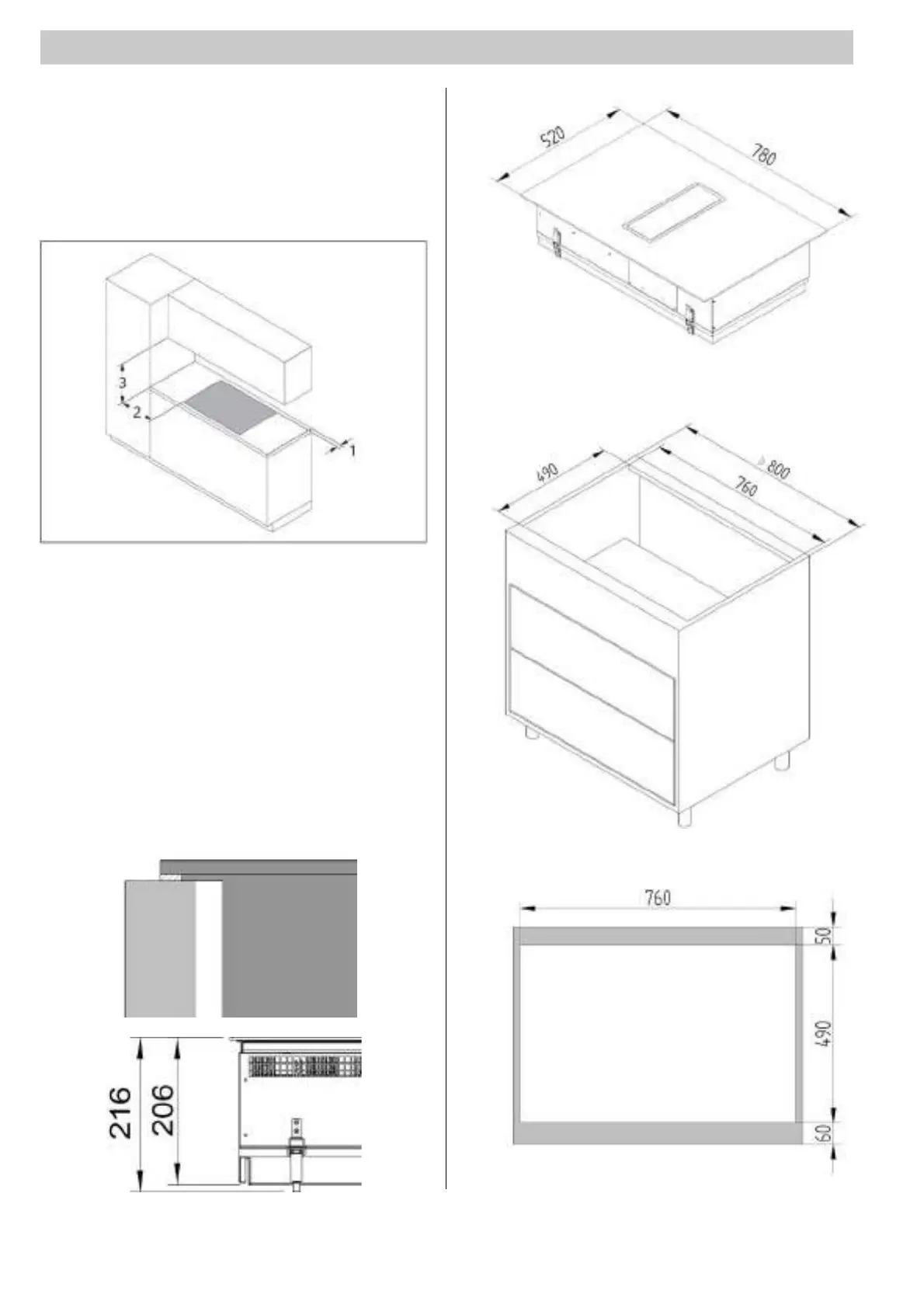

4.4.1 Required clearance distances
Observe the required clearance distances.
1. Minimum clearance of 50 mm between the worktop
cut-out and the rear edge of the worktop.
2. Minimum clearance of 250 mm from the left and right
of the worktop cut-out to the adjacent cabinet or wall.
3. Minimum clearance of 800 mm between the worktop
and the wall unit.
4.5 Worktop cut out
4.5.1 Surface mounting installation
Glass ceramic dimensions
Cut out dimensions for surface mounting
