Duct connection for worktop depth > 600 mm

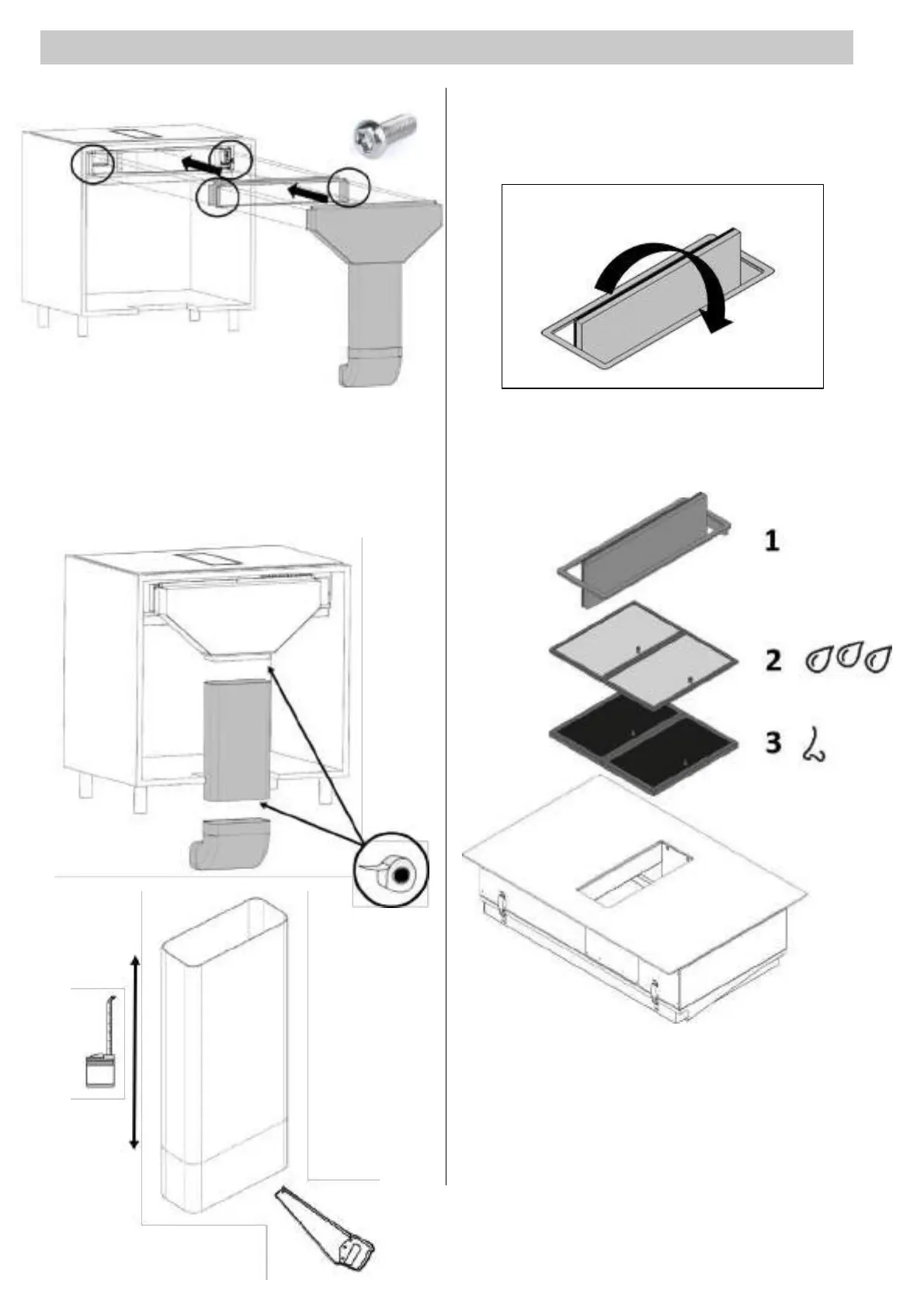

4.7.3 Connecting the duct pipes
x Cut the vertical air duct according to the floor unit
height
x Use the duct tape in order to seal the pipes
4.8 Inserting the filters
Remove the air inlet flap, by rotating the turnable part of
90 degrees.
Air inlet flap [1], grease filters [2] and carbon filters [3]
can be easily inserted/removed by hands.
See picture below.
