DS-E Series（1~6KVA）User’s Manual
17
For long time-delay UPS, battery input expansion line is required to be
connected. Refer to the relevant content of the battery box installation and
cable connection.
3.5.3 DS3000E Series
AC input of DS3000E series adopts line bank, and the AC output adopts socket
and line bank. You can insert load power cord into the output socket directly.
Normally, the load current of each socket cannot exceed 5A.
When connecting the line bank, take the small cover board off from the line
bank, and pay attention to the definition of connection terminal: from the left to
the right (rear view) orderly are: live wire (L), neutral wire (N) and ground wire
(GND). After the connection, please check up whether the wire of connection is
correct and firm, and then install the small cover board back to the box.
For long time-delay UPS, battery input expansion line is required to be
connected. Refer to the relevant content of the battery box installation and
cable connection.
3.5.4 DS6000E Series
Line bank of DS6000E Series are protected by the line bank covers, referring
to the figures of the front and rear panel structure, whose disassembly will
show line bank illustrated below in the Fig.3-5 where DS6000E’s stays and in
the Fig. 3-6 where DS6000EL’s stays.
Grounding
N
L
L
N
PE
INPUT
OUTPUT
AC Output "L"
AC Output "N"
AC input "L"
AC input "N"

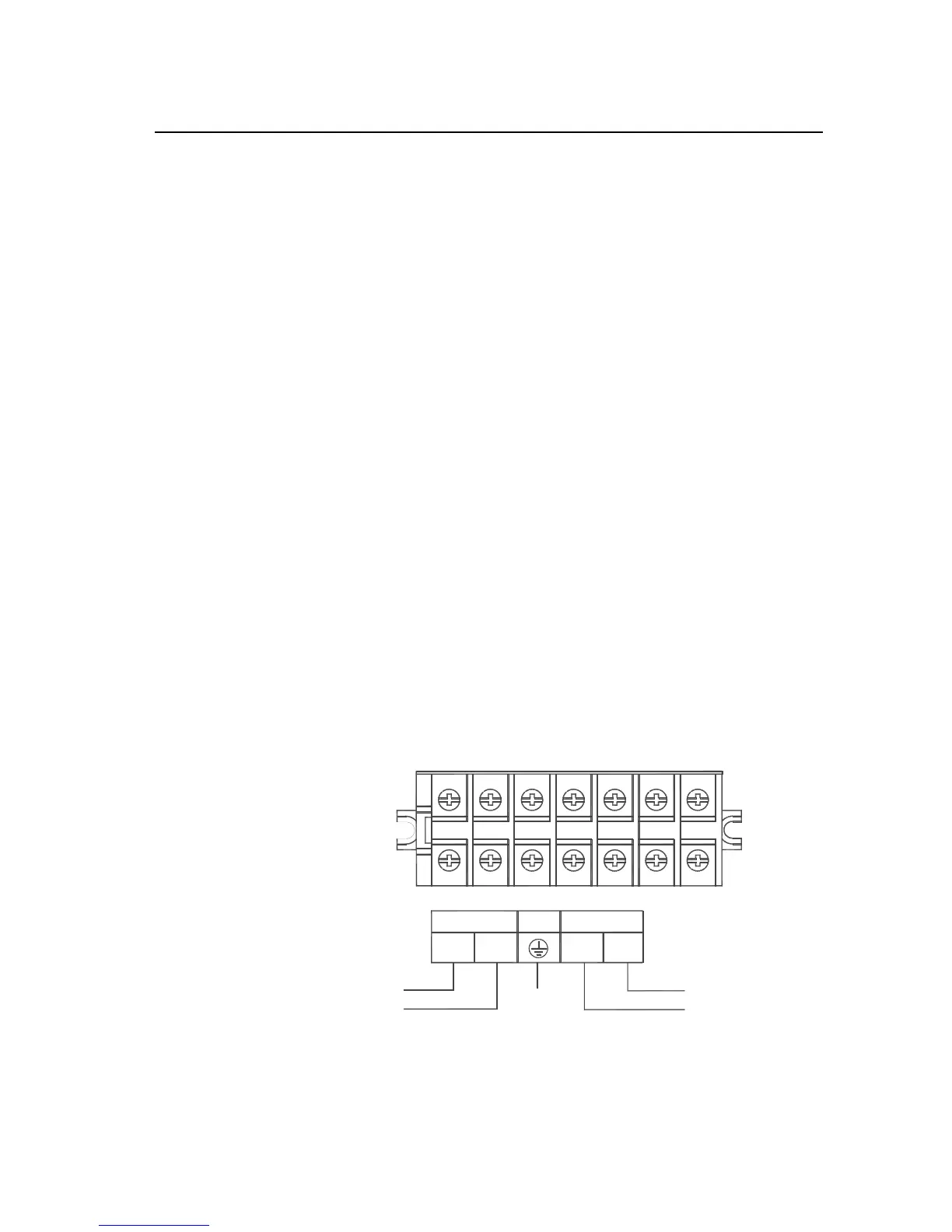

Fig. 3-5 DS6000E Wiring Illustration
