Opticon H22 - Right and Left View

14
1.2. Right and Left View

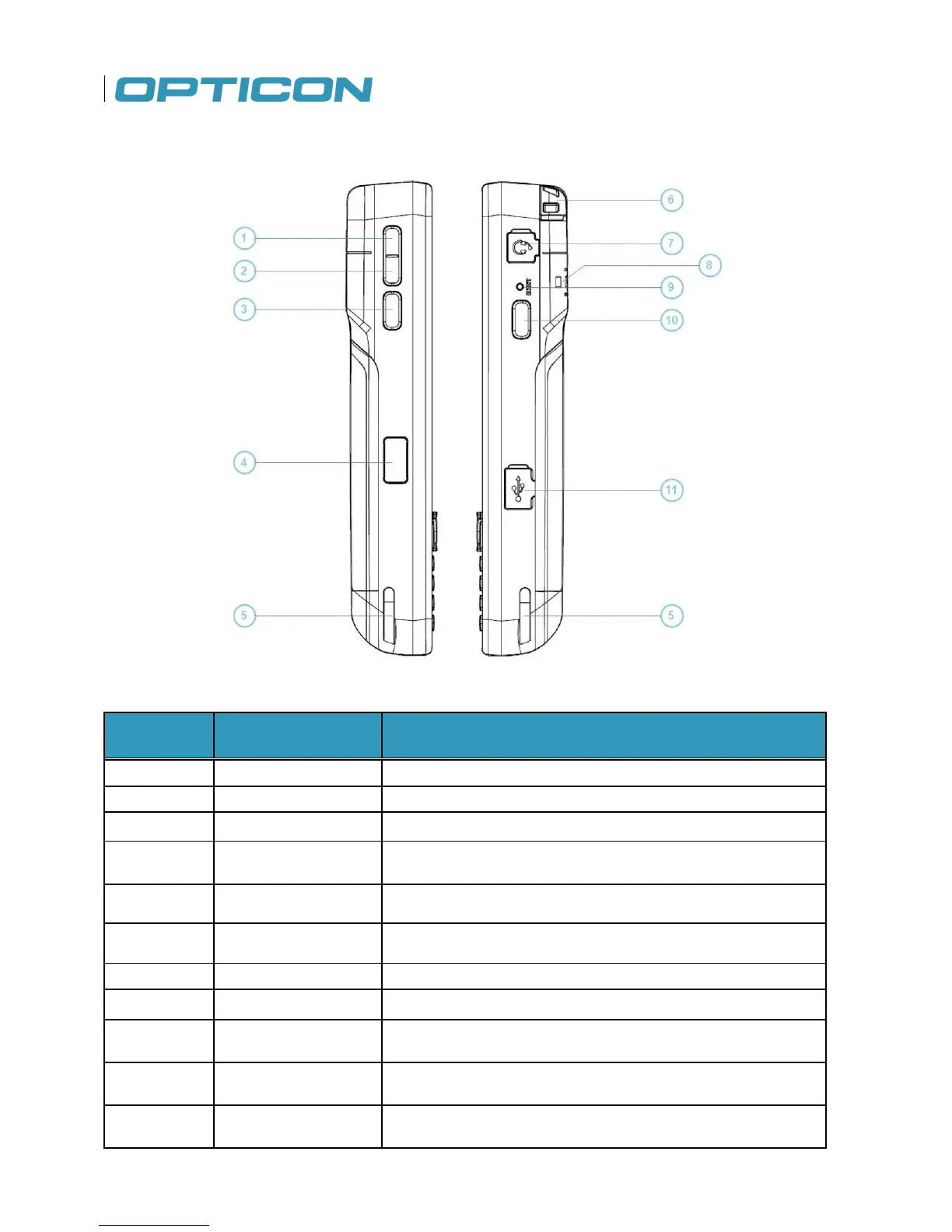

Figure 2. H-22 Right and Left Views
No. Item Description
1 Volume up Press the Volume up key to turn the volume up.
2 Volume down Press the Volume down key to turn the volume down.
3 Scan key (left) Press the Scan key to scan barcodes.
4 IrDA port The H-22 transmits and receives infrared signals from this
port.
5 Cradle notch This notch secures the H-22 into an optional charging
cradle.
6 Stylus Use the stylus to calibrate, write, draw or select items on
the touchscreen.
7 Headset jack Connector for stereo handsfree headset
8 Stylus tether notch Attach the stylus tether to the H-22 using this notch.
9 Reset button Press the Reset button to perform a soft reset of the H-22.
10 Scan key (right) Press the Scan key to scan barcodes.
11 Micro-USB
connector
Insert a micro-USB connector here to sync the H-22 with a
PC or to charge the battery.
