28
1.10.2. Removing the MicroSD Card
Step 1:
Remove the battery cover and remove the battery. See "Removing the Battery Cover" and
"Removing the Battery" for details.
Step 2:
Slide the microSD card lock toward the bottom of the H-22.
Step 3:
Lift the microSD card holder up and remove the microSD card from the holder. See Fig. 19.

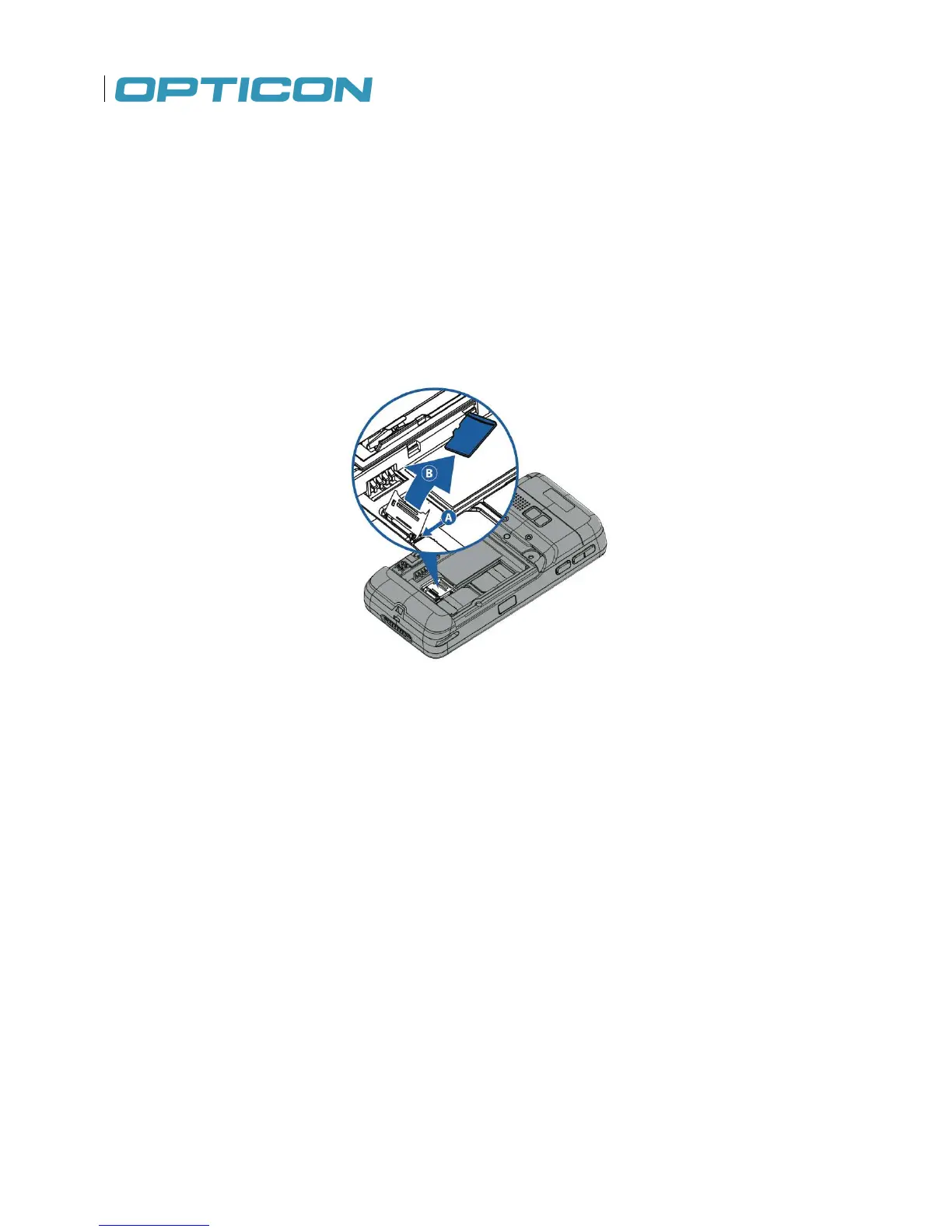

Figure 19. Remove the MicroSD Card
Step 4:
Push the card holder back down into position and slide it back into the lock position.
Step 5:
Replace the battery and replace the battery cover. See “Replacing the Battery Cover” and "Installing
the Battery" for details.
