9.3. Print Contrast Signal (PCS)
PSC 0.3 or higher
<Conditions>
MRD : 32% and higher
(70% or higher reflectivity of white bar and quiet zone)
Distance : 60 mm from the front edge of the scanner
Barcode : 0.33mm PCS: 0.3 UPC/EAN specified in Section 9.1.
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
PCS =
Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
9.4. Minimum Resolution
1D Code : 0.127 mm (5 mil) Code 39 specified in Section 9.1
GS1-Databar : 0.169 mm (6.7 mil) GS1 Databar-Limited specified in Section 9.1
Stacked Code : 0.169 mm (6.7 mil)
PDF417, GS1 Databar-Limited Composite specified in Section 9.1
2D QR Code : 0.169 mm (8.4 mil) OR Code specified in Section 9.1
2D DataMatrix : 0.212 mm (8.4 mil) Data Matrix specified in Section 9.1
<Conditions>
Barcode : The above codes specified in Section 9.1
Distance : 40 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
For the pitch angle and tilt angle measurement, set the skew angle β = +15°
9.5. Wide Barcode
Code 39 with width of 100 mm and resolution of 0.2 mm can be read.
<Conditions>
Barcode : 0.20 mm Code 39 specified in Section 9.1
Distance : 95 mm from the front edge of the scanner
Angle
: α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞

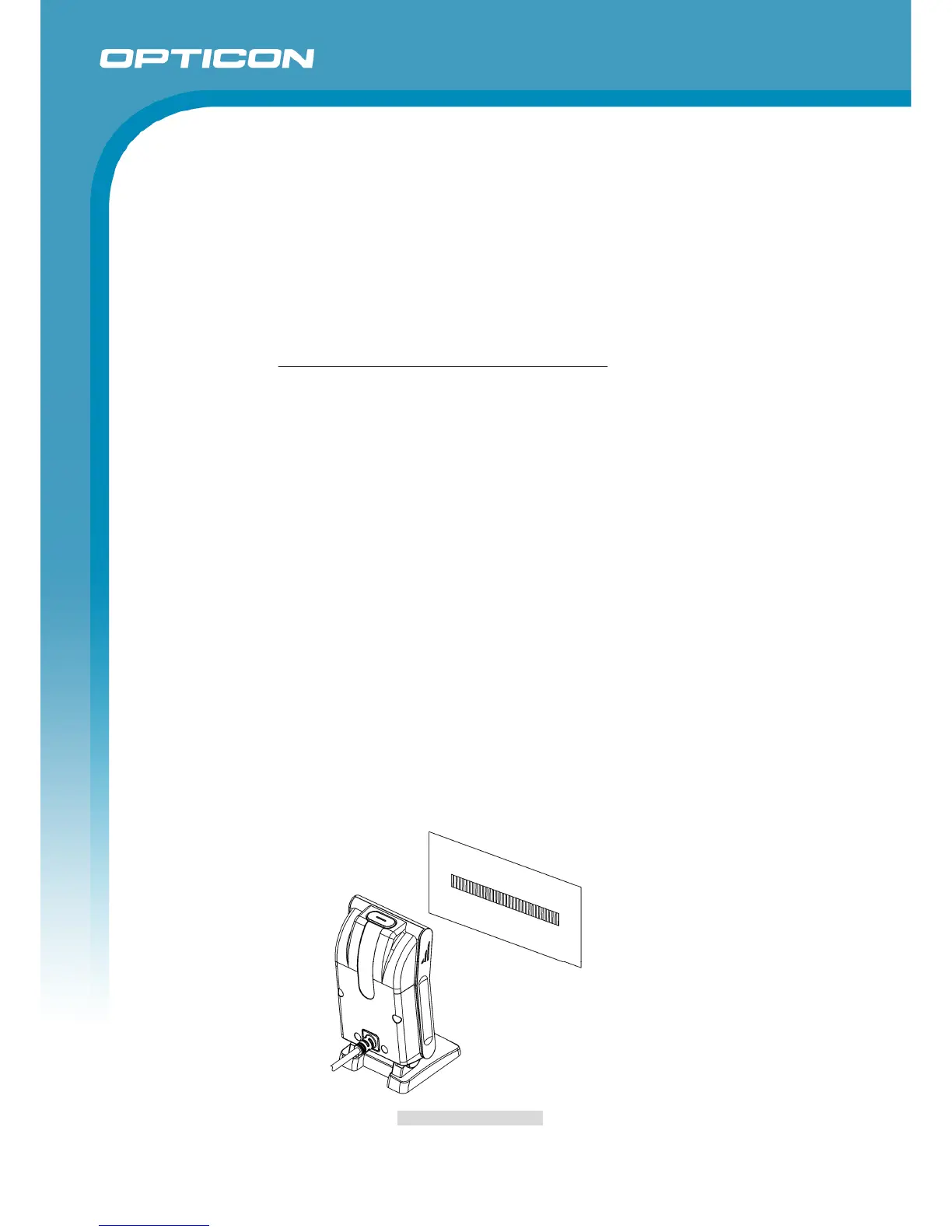

Figure 11: Wide Barcode

Opticon M-10 Specifications

General

Brand	Opticon
Model	M-10
Category	Scanner
Language	English
