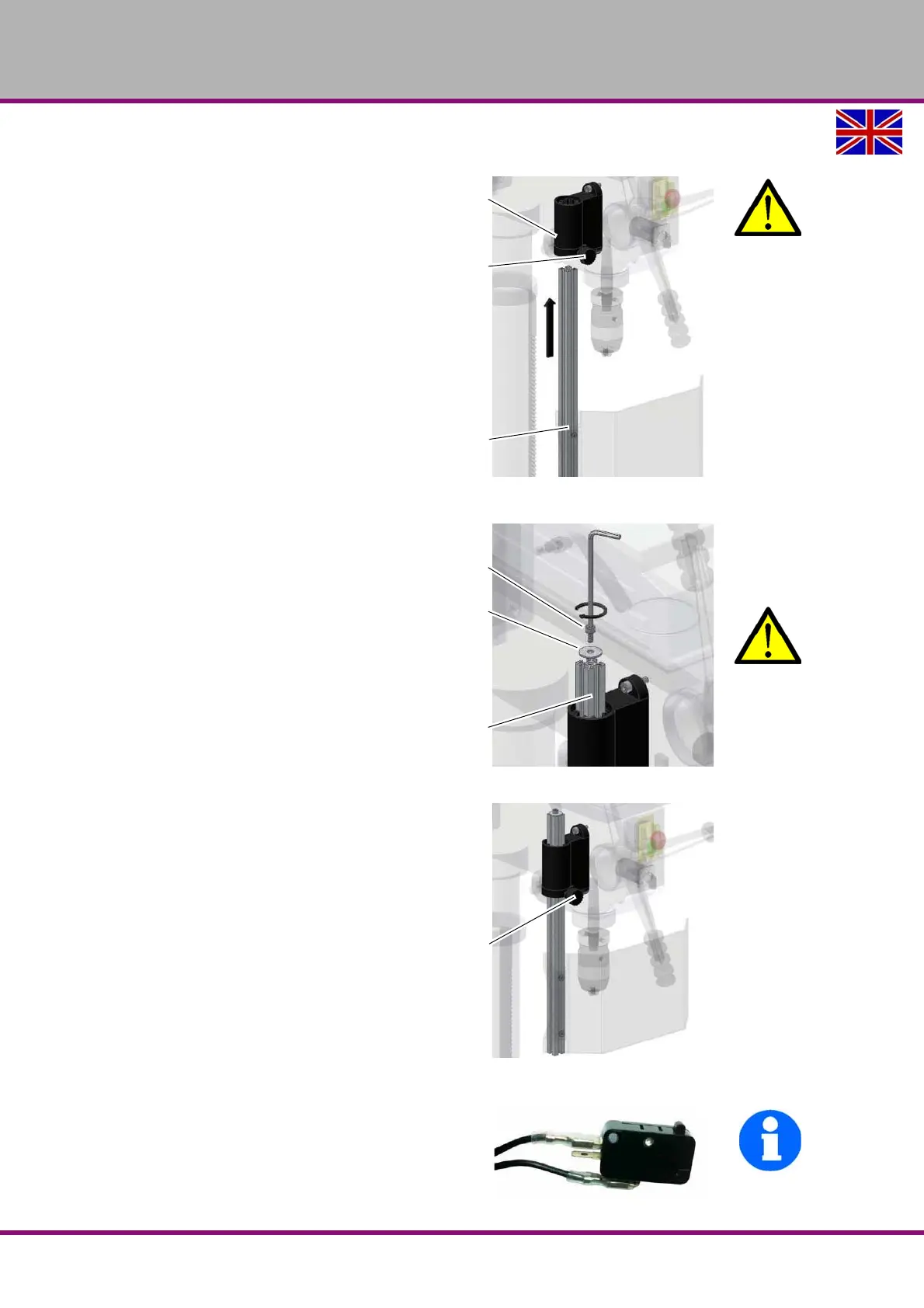

Assembly of the drill chuck protection
WARNING!
Never operate drilling machines without
drill chuck protection.
1. Shift the aluminium profile including the
mounted safety screen (plastic screen)
into the fixture which is mounted on the
drilling head.
2. After assembly of the aluminium profile
screw down the setting screw.
Img.3-5: Assembly-1
3. Screw the hexagon socket screw with
the locking washer into the aluminium
profile.
WARNING!
Make sure that the hexagon socket screw
and the locking washer are mounted and
tightly screwed. Otherwise the aluminium
profile would slide out of the fixture when
the setting screw is screwed off.
Img.3-6: Assembly-2
4. Make sure that the setting screw shows
to the front after assemblyand if the drill
chuck protection isclosed.
Img.3-7: Assembly-3
INFORMATION
A switch is integrated in the fixture of the drill chuck protec-
tion which monitors the closed position. It is not possible to
start the machine until the drill chuck protection is closed.
Fixture
Setting screw
Aluminium profile
including mounted
safety screen
Hexagon socket
screw
Locking washer
Aluminium profile
