Optimum OPTIdrill D26 Pro - Technical Specification

Technical specification
Version 1.0.3 - 2022-04-06 74 Translation of original instruction
D17 Pro│D23 Pro│D26 Pro│D33 Pro
EN
D17Pro_D23Pro_D26Pro_D33Pro_GB_2.fm

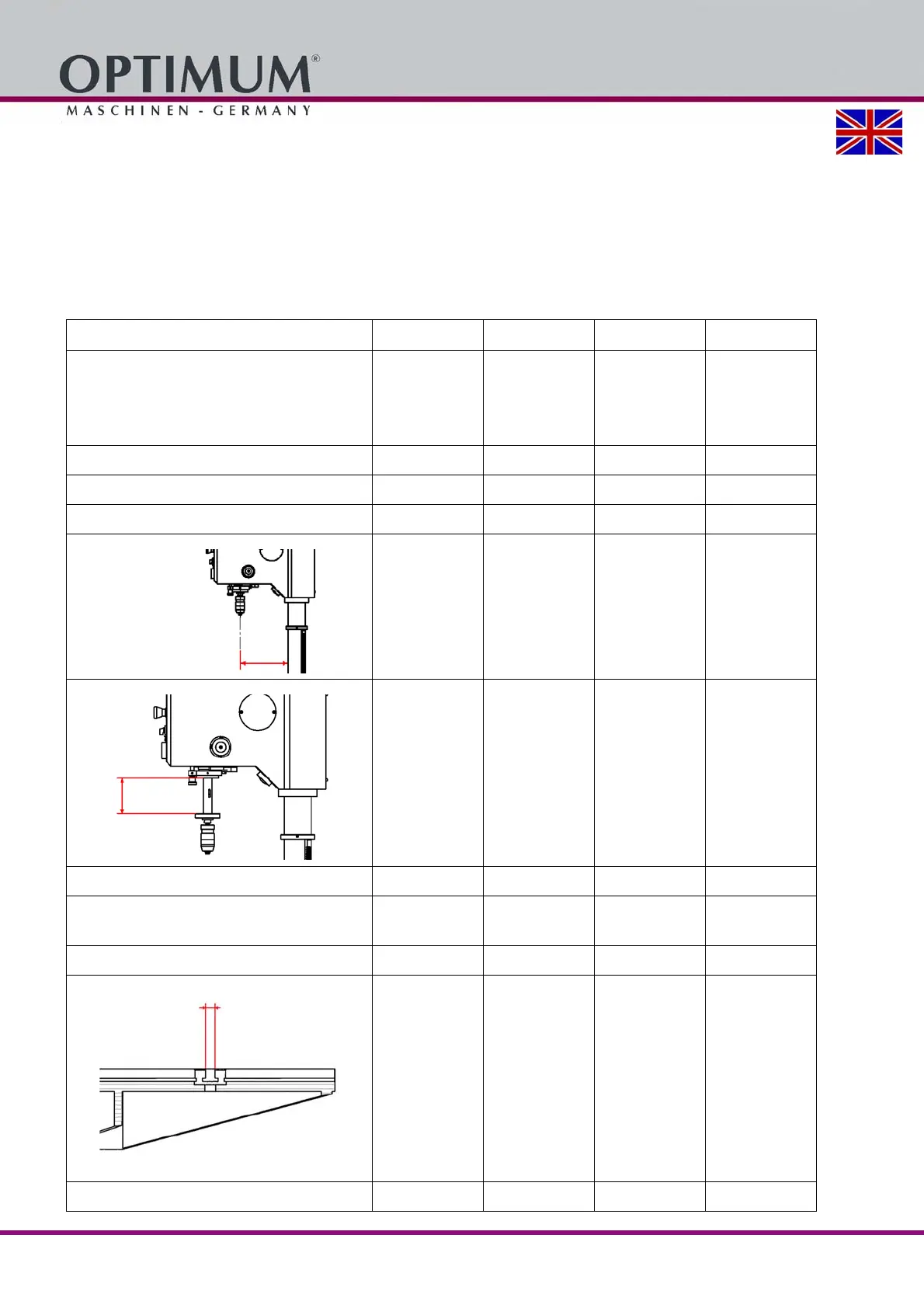

2 Technical specification
The following information represents the dimensions and indications of weight and the manu-
facturer‘s approved machine data. The calculated envisaged life of the machine to EN ISO
13849 and EN ISO 12100 is at least 10 years with a daily operation of 8h at 220 working days
per year when keeping to the ambient conditions, proper use and keeping to the required main
-
tenance intervals. Safety-related replacement parts are included in this calculation. Normal
replacement parts such as, for example, bearings or V-belts, are not part of this calculation.
D17 Pro D23 Pro D26 Pro D33 Pro
Electrical connection
230V~50 Hz
optional ~60Hz
230V~50 Hz
or
400V~50 Hz
optional ~60Hz
400V~50 Hz
optional ~60Hz
400V~50 Hz
optional ~60Hz
Spindle drive motor power 500 W 750 W 750 W 1.1 kW
Drilling capacity in steel (S235JR) [mm] Ø 16 mm Ø 25 mm Ø 25 mm Ø 30 mm
Drilling capacity in steel (S235JR) [mm] Ø 12 mm Ø 20 mm Ø 20 mm Ø 25 mm
152 mm 180 mm 210 mm 254 mm
65mm 80mm 85mm 120mm
Spindle seat MT2 MT2 MT3 MT4
Table size
Length x Width of the working surface
235 x 220 mm 280 x 245 mm 330 x 290 mm 475 x 425 mm
Table side tilt / Turning the table ± 45° / 360° ± 45° / 360° ± 45° / 360° ± 45° / 360°
T-slot size / distance / number
12 mm
diagonal
12 mm
diagonal
14 mm
diagonal
14 mm
diagonal
Distance spindle - table [mm] max. 325 mm max. 425 mm max. 720 mm max. 695 mm
Throat depth
Spindle stroke
T-slot size
