Optimum OPTIdrill D26 Pro - Digital Drilling Depth

Operation
Version 1.0.3 - 2022-04-06 92 Translation of original instruction
D17 Pro│D23 Pro│D26 Pro│D33 Pro
EN
D17Pro_D23Pro_D26Pro_D33Pro_GB_4.fm
4.5.2 Digital drilling depth
Displays the current drilling depth.

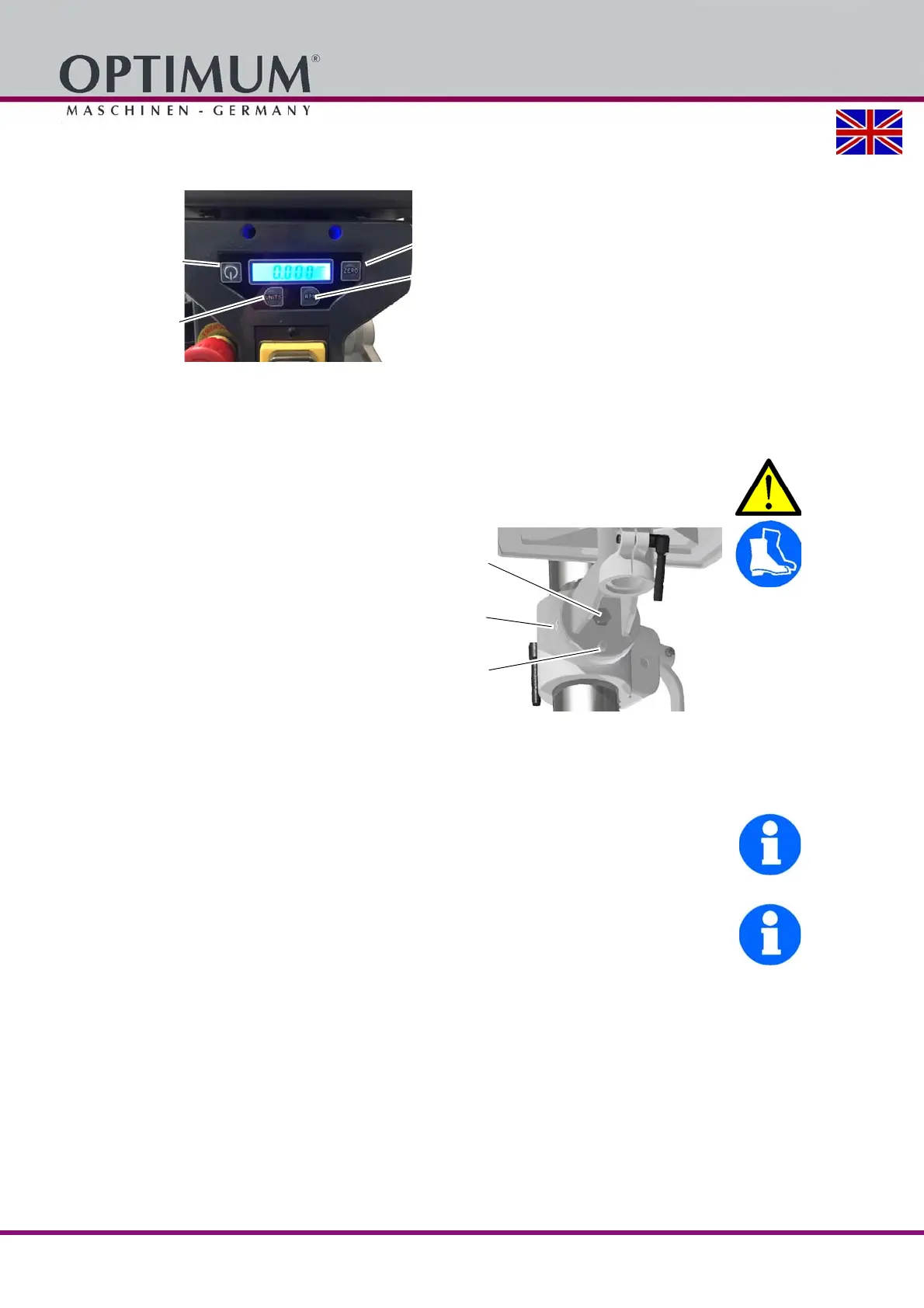

Img. 4-3: Digital readout
4.6 Table Inclination
CAUTION!
The further the drilling table is tilted to the left or right, the lower the carrying capacity
and the clamping action of the inclined drilling table.
The drilling table can be inclined to the
right or to the left.
 Loosen the fastening screw.
 Pull out the set screw.
Img. 4-4: Fastening screw
 Set the desired angle using the scale.
 Re-tighten the fixing screw again.
INFORMATION
If you can not pull out the threaded pin, so the seat can be solved by turning at the nut clock-
wise.
INFORMATION
The threaded pin is only provided for correct positioning of a horizontal level of the drilling table.
Drilling depth zero
point
Switching to
rev counter
Display
On / Off
Unit
Metric / Inch
Fixing screw
Scale
Threaded pin
