Assembly and commissioning
Version 1.0 dated 2015-05-27 Page 34 Original operating instructions
F3GB

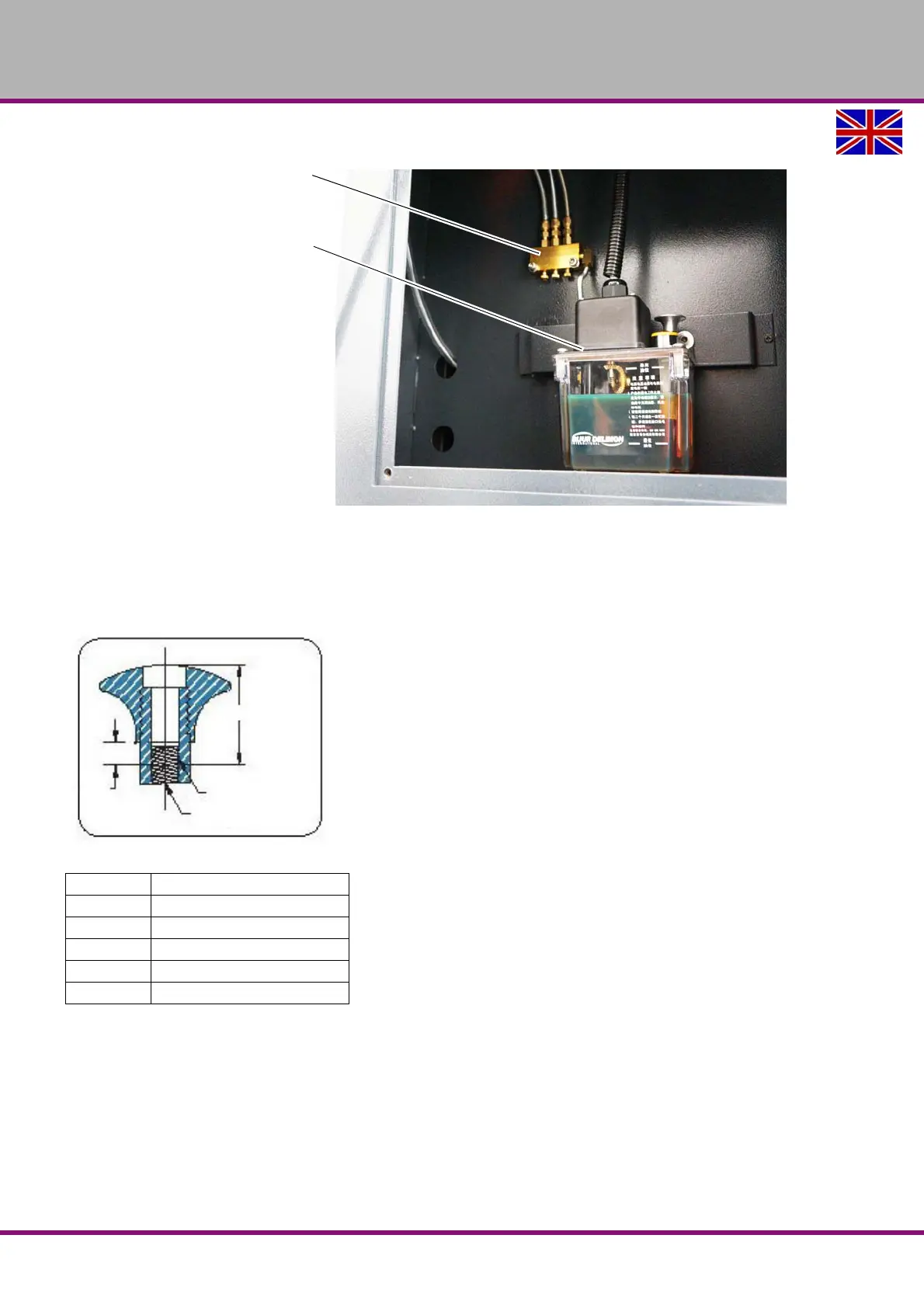

Reducing the discharge volume per cycle:
To reduce oil delivery, remove lock screw, measure “A”, turn adjusting screw clockwise,
increasing “A”by “B” dimension, as shown on table.
Choke manifold system
Central lubrication system
B Discharge
11.2 mm 0.2 cc
8.4 mm 0.4 cc
5.6 mm 0.6 cc
2.8 mm 0.8 cc
0 mm 1.0 cc
A
Lock screw
Adjusting screw
3/16
