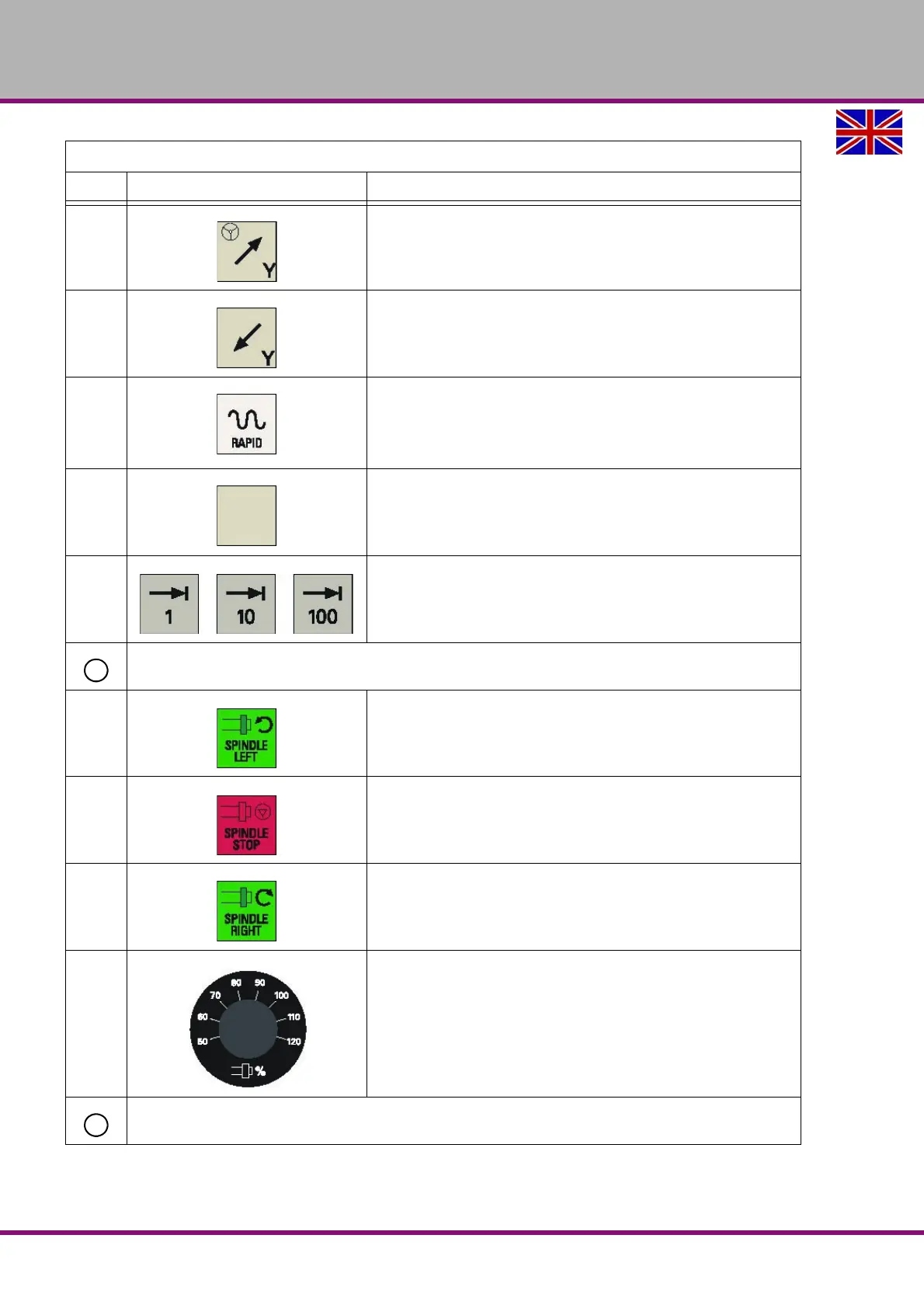

User interface, machine control panel
Version 1.0 dated 2015-05-27 Page 50 Original operating instructions
F3GB
Y axis key
Traverses the Y axis in the positive direction.
Y axis key
Traverses the Y axis in the negative direction.
Rapid traverse overlay key
Traverses the selected axis at rapid traverse speed while pressing
the relevant axis key.
Inactive key. No function is assigned to this key.
Incremental feed keys (with LED status indicators)
Sets increments desired for the axis to traverse.
Spindle control keys
Starts the spindle counterclockwise
Stops the spindle
Starts the spindle clockwise
Spindle speed override switch
Makes the spindle rotate at the specified speed override.
Program state keys
Excerpt from the manual of the operating instructions for "SINUMERIK 808D OPM Operation"
Element Description
8
9
