2) Remove the control module.
3) Set DIP switch S2.
4) Once configured, reinsert the control module and connect the power supply.
* END ELEMENT
DIPSWITCH 1 → ON*
DIPSWICTH 2 → ON*
INTERMEDIATE
ELEMENT
DIPSWITCH 1 → OFF
DIPSWICTH 2 → OFF

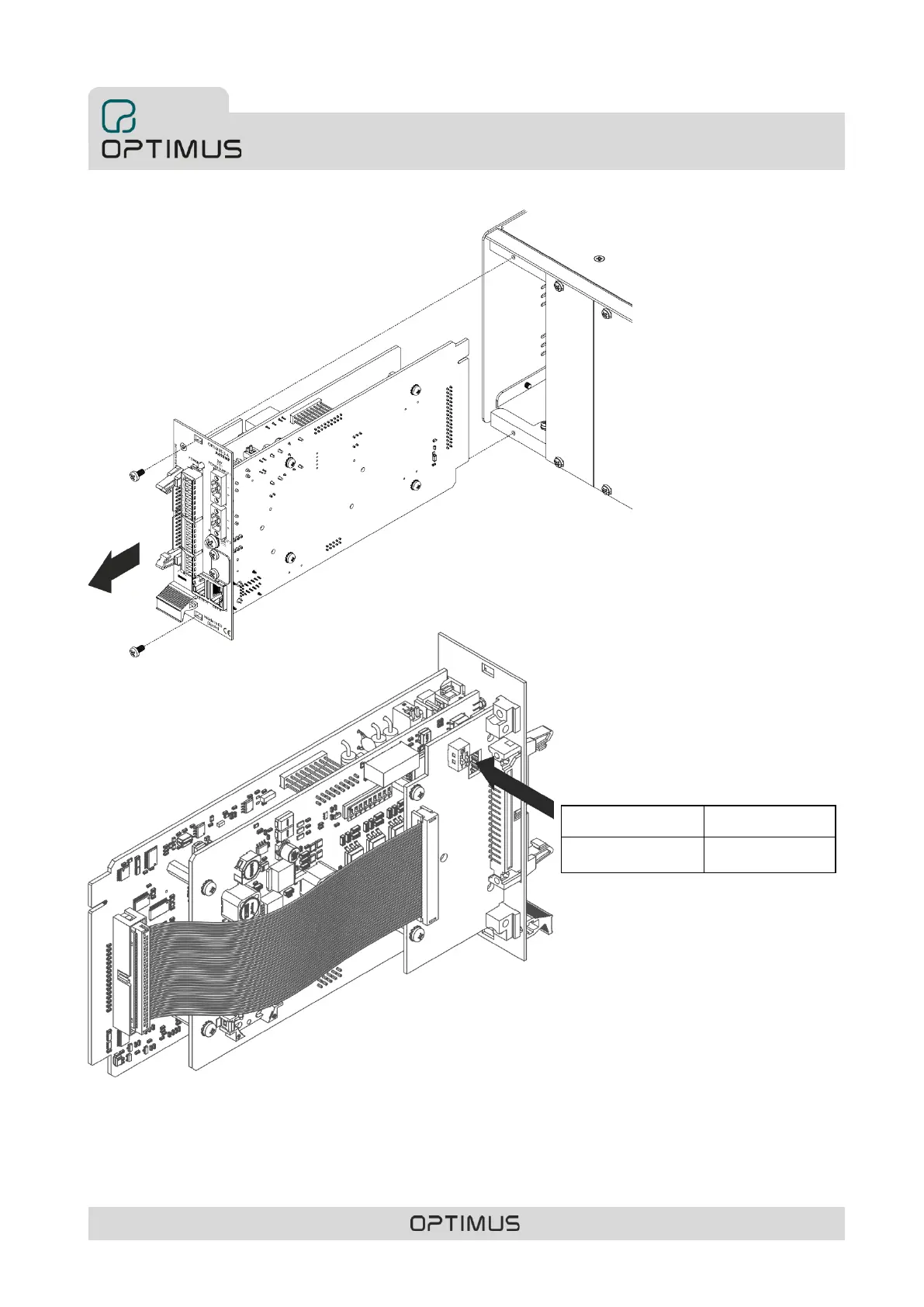

Figure 17
Figure 18
DIPSWITCH S2.
CONFIGURATION AS AN INTERMEDIATE OR
END ELEMENT OF THE BUS CAN
* FACTORY SETTINGS
