1. INTRODUCTION

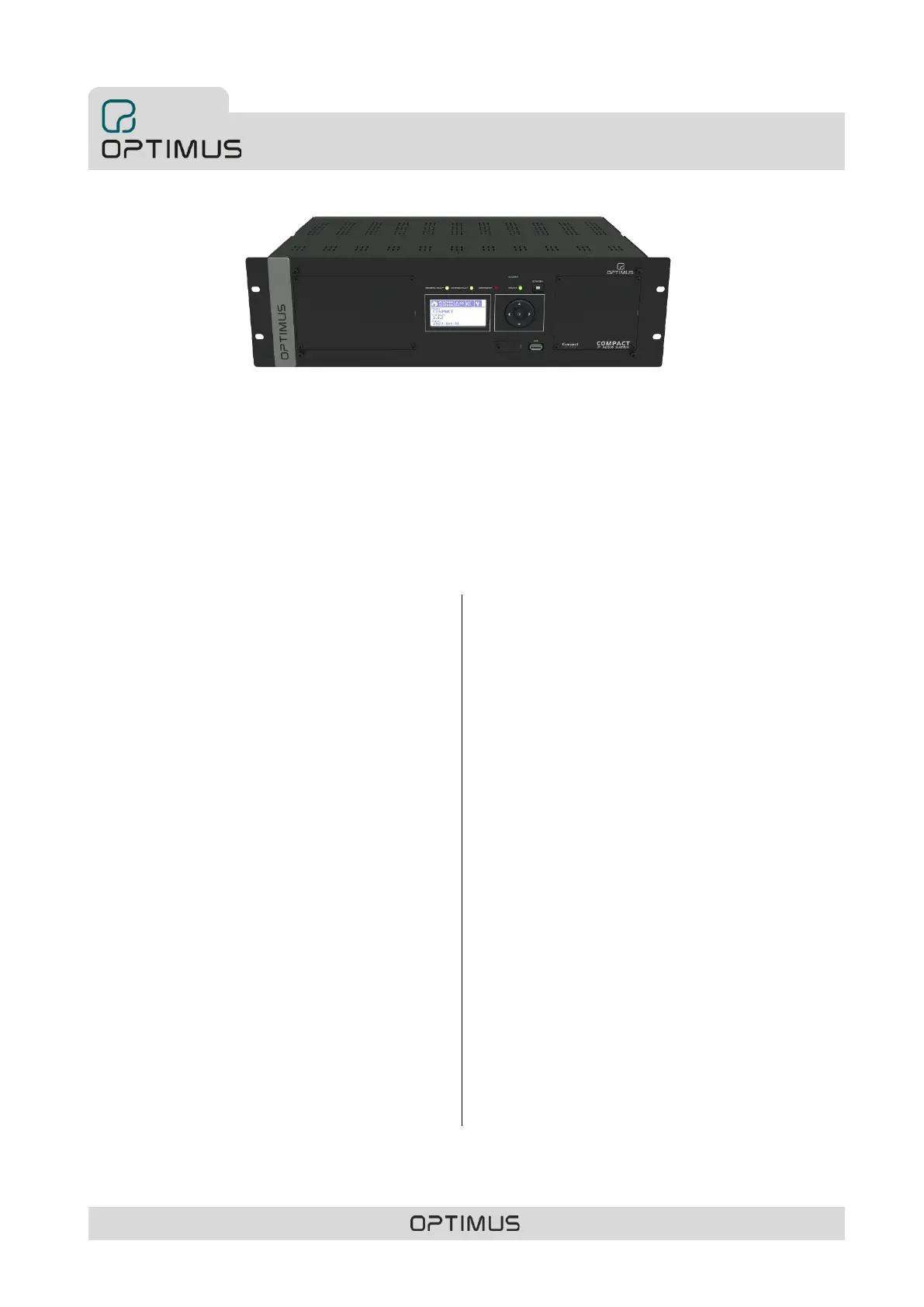

Modular audio matrix with IP connection and monitoring functions for fully managing PA and voice alarm systems. It is the main
component of the COMPACT control system.
It has 10 slots for the insertion of UMX-C16, UMX-EA3, UMX-2M3, UMX-2SA, UMX-2SB, UMX-MC6, UMX-LNK or UMX-PS cards.
The capacity of the matrix may be expanded using COMPACT-E units (10 slots per unit) up to a maximum of 10 units. The COMPACT-
E units allow housing cards UMX-2SA, UMX-2SB, UMX-MC6, UMX-C16 or UMX-LNK/E.
It includes the necessary connections, monitoring system and indicators to comply with the EN54-16 fire evacuation standard.
Main characteristics:
• Dual Ethernet connection for installations with redundant
network systems. The connection is constantly monitored
and switches automatically when required.
• It is equipped with two power supplies (one primary and
one secondary) for redundant installations.
• Front USB input for music.
• CAN bus for communicating with the COMPACT-E matrix
and peripherals.
• Reception of digital audio via an IP connection (4
simultaneous channels).
• Reception and sending of control data via an IP connection.
• Monitoring of the operation of the equipment using Call
Point software and/or basic TELNET or SSH (Secure Shell)
functions.
• Configuration of the IP address in Flash memory via
software.
• Constant notification (IP) of the status of the equipment
via a Heart Beat signal.
• It has 16 GB of internal memory for storing audio files to
be used as pre-recorded messages. Messages can be
recorded/updated remotely via IP, using Call Point
software.
• Monitoring functions:
- of the speaker lines (short-circuit and line open).
- of the amplifiers.
- of the cards inserted in the matrix.
- of the primary and secondary power supplies.
- of the input contacts.
- of the pre-recorded messages.
• Control of the volume of zones.
• Management of the musical channels of the system.
• Communication with external systems:
- VoIP: receiving of direct calls from any VoIP digital
telephone that uses standard SIP protocols. Incorporates
zone selection by sending DTMF tones. Provides the
possibility of protecting the access with a password.
- Direct integration (XML, API/DLL).
• Allows housing module ME-200B (front evacuation panel).
