Removing the Top Cover and Keypad Board

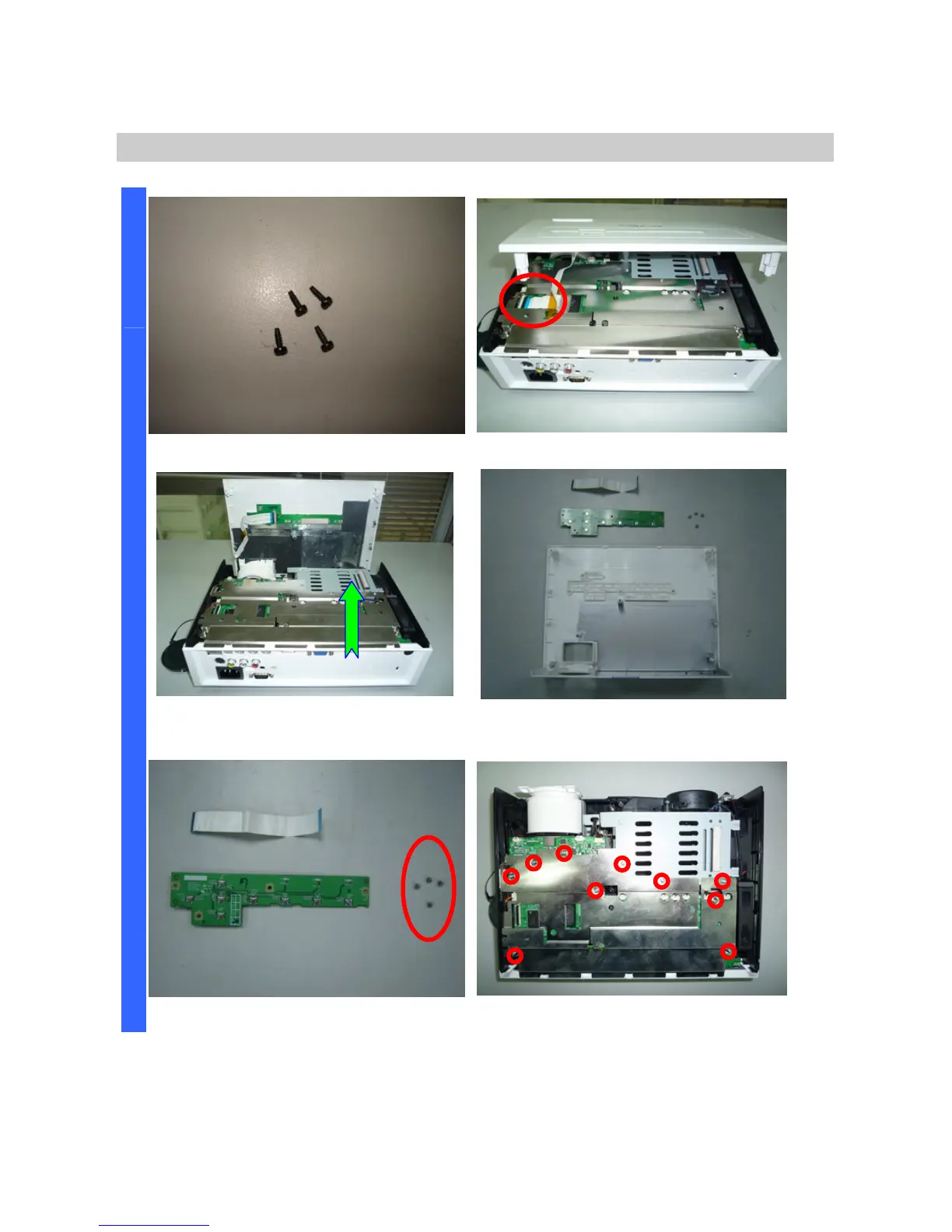

Look these four screws (S03). Remove the FFC cable.
Take off the top case. Keypad board / FCC cable /
Screw review.
D
I
S
A
S
S
E
M
B
L
Y
Review the four screw (S04). Remove the 7+3 piece screws.
