Optoma ES522 - Page 38

Delta Elec. Inc. ES522 & EX532
Company Confidential Optoma___________________ Delta________________
38
2009/06/30

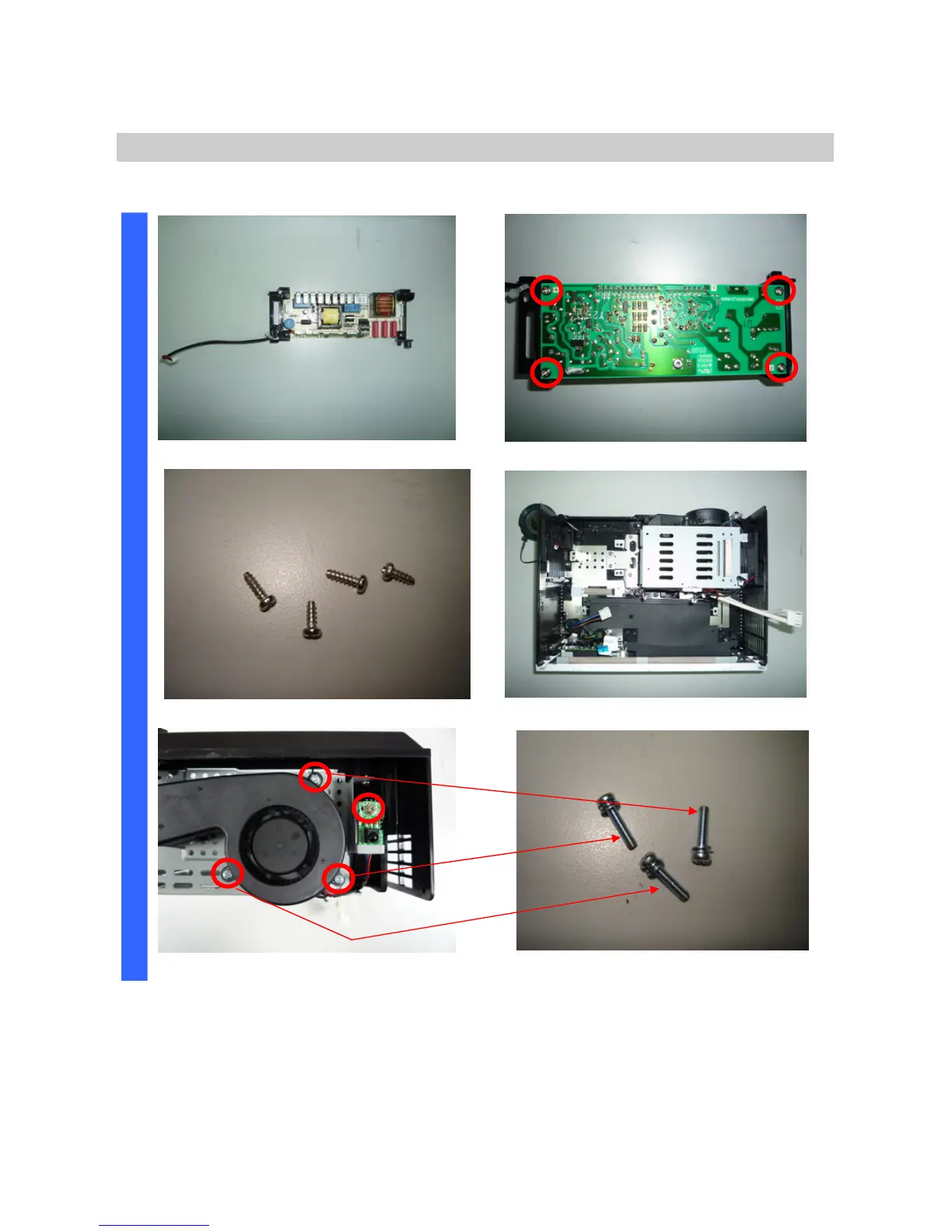

Removing the Ballast & Fan & IR sensor board
Review the top side of Ballast. Remove the four screws.
Review the four screws (S15). Review the bottom side w/o Ballast.
D
I
S
A
S
S
E
M
B
L
Y
Remove the four screw. Review the three screws (S16).
