Optoma ES522 - Page 39

Delta Elec. Inc. ES522 & EX532
Company Confidential Optoma___________________ Delta________________
39
2009/06/30

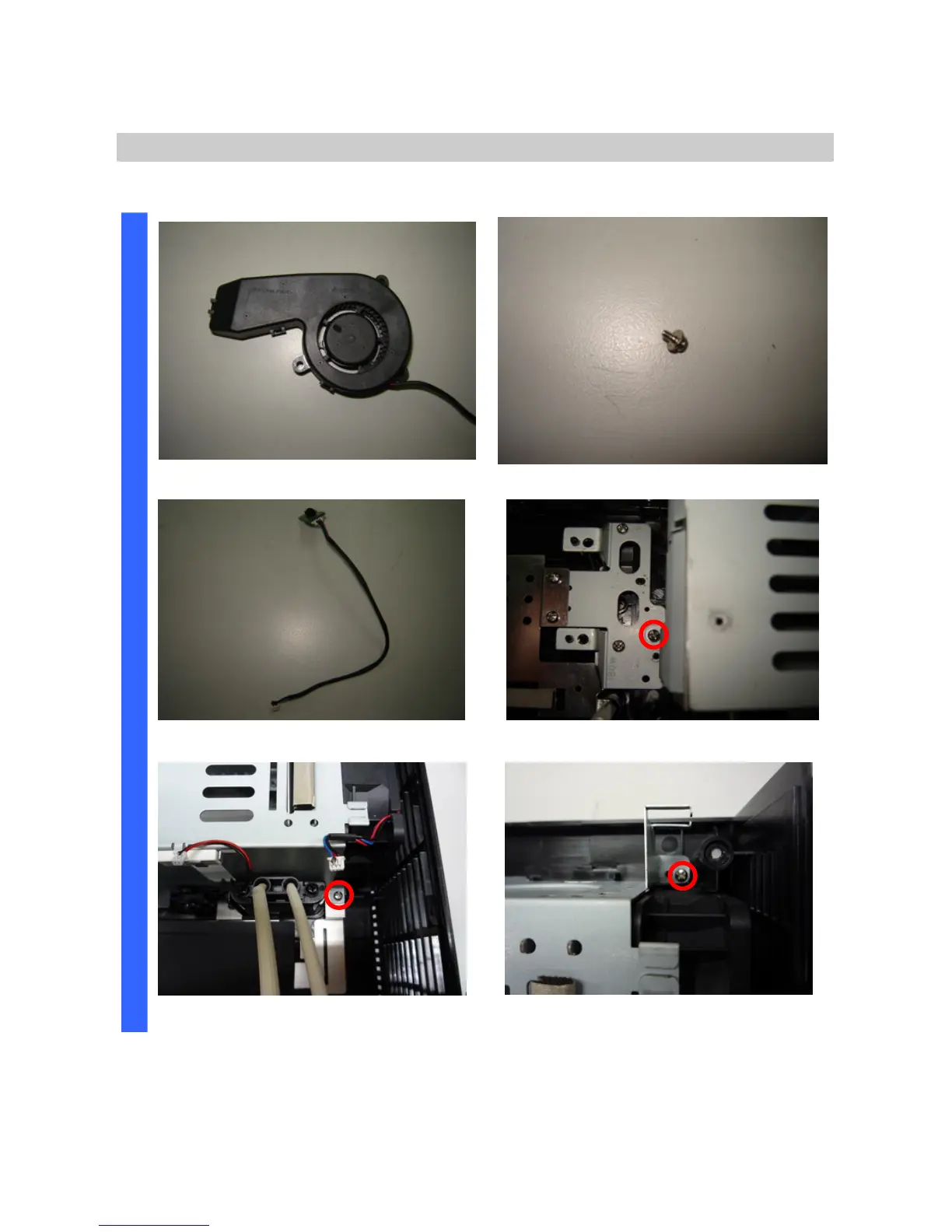

Removing the Lamp module chassis fan and accessory
Review the lens fan. Review the screw (S17).
Remove the IR receiver board. Remove the screw (S18).
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw 1 of 2 (S19). Remove the other screw 2 of 2 (S19).
