Main Board Review
Careful area of these connectors and
check these right positions connection
when you recover main board again.
Careful area of these connectors and
check these right positions connection
when you recover main board again.
D
I
S
A
S
S
E
M
B
L
Y

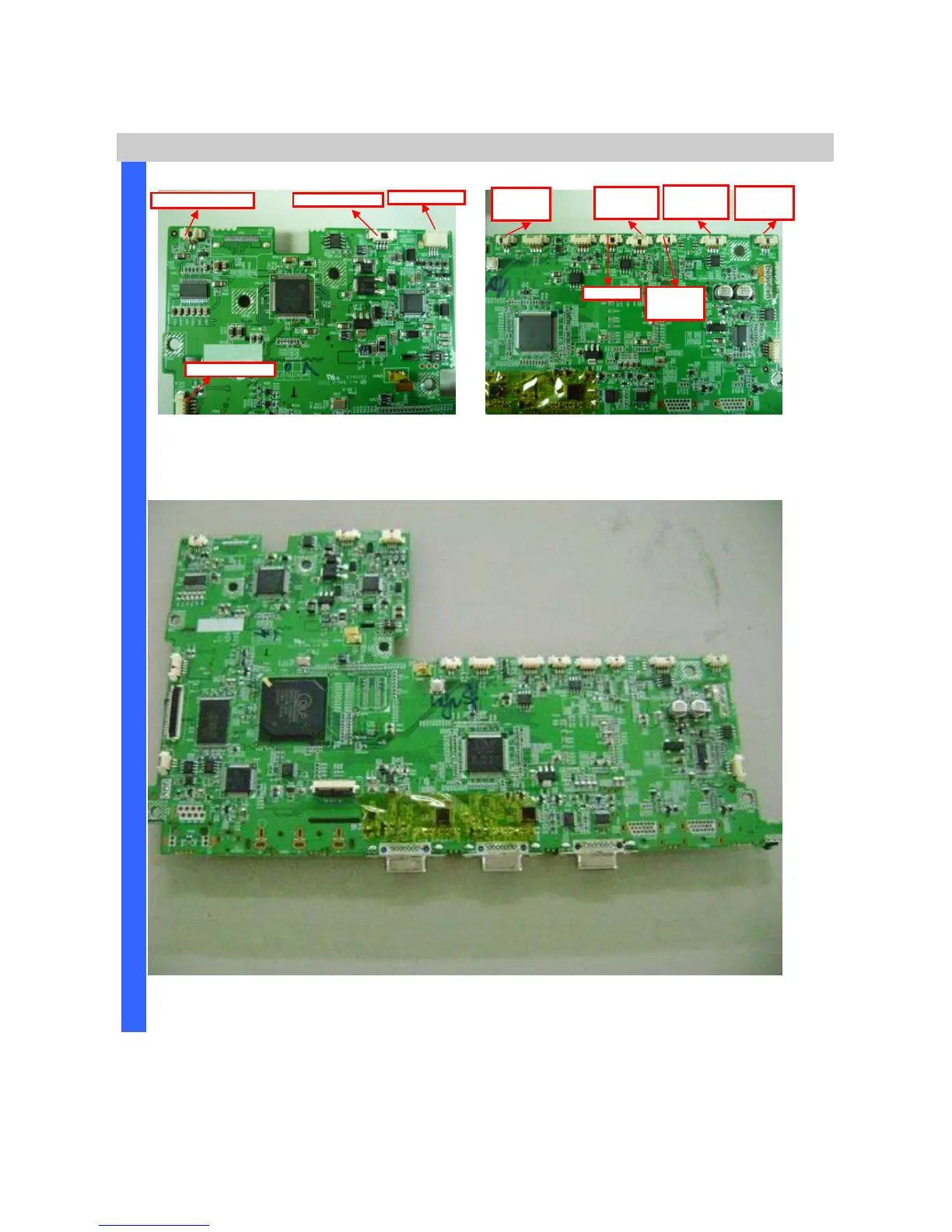

Main Board Review #Top side
P704 INDEX
P708 C/W
P801 IR
P8002
Blower Fan
P802
Lock-SW
P8003
Power Fan
P8001
Lamp Fan
P707 Ballast
P803
TH-Break
