Removing the Accessory and I/O Board

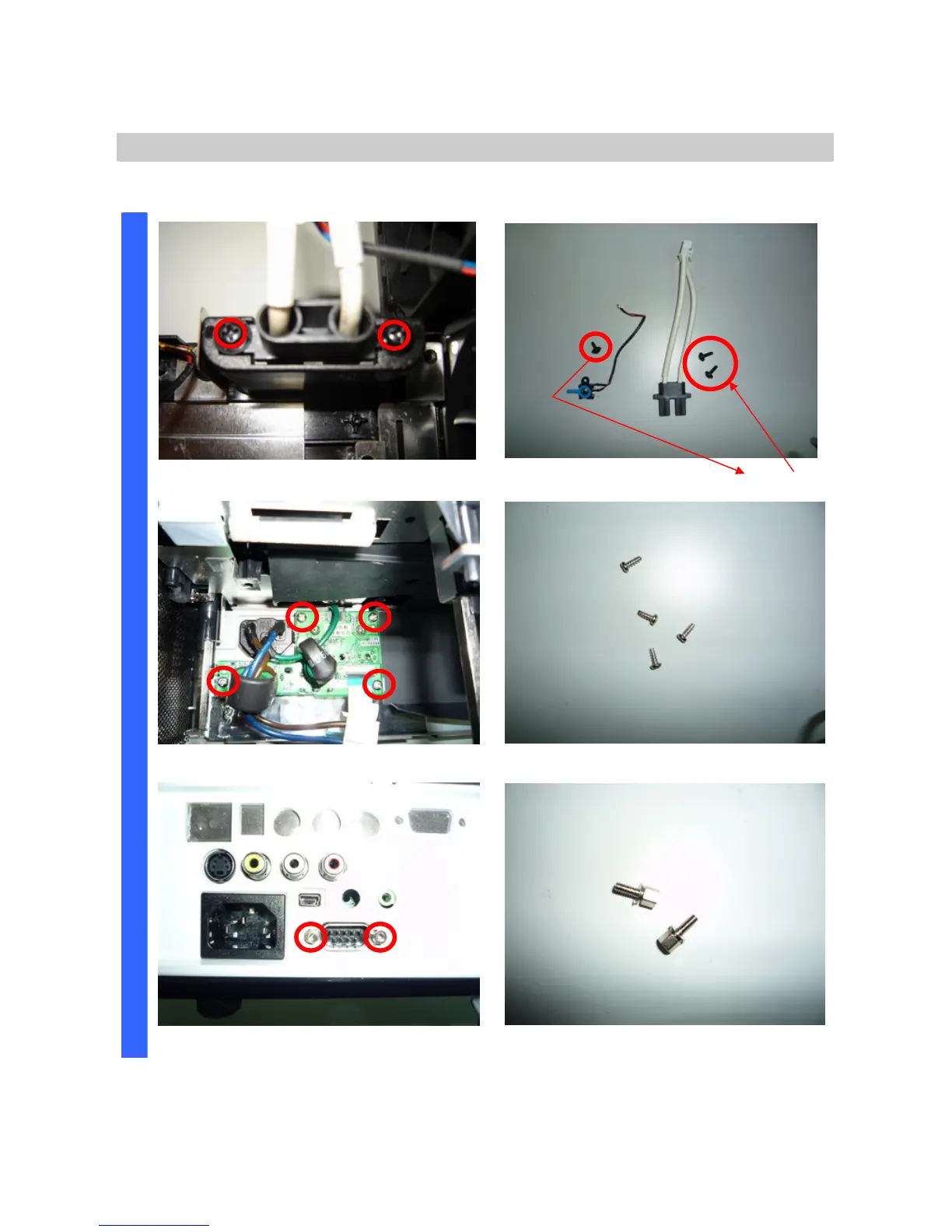

Remove the HV wire. Two grounding wire screw (S20)(S21).
Rmove I/O board four screws (S22) Review the four screws
D
I
S
A
S
S
E
M
B
L
Y
Remove the two hexagonal screws. Review the two hexagonal screws(S23).
