Removing the I/O Board and Accessory

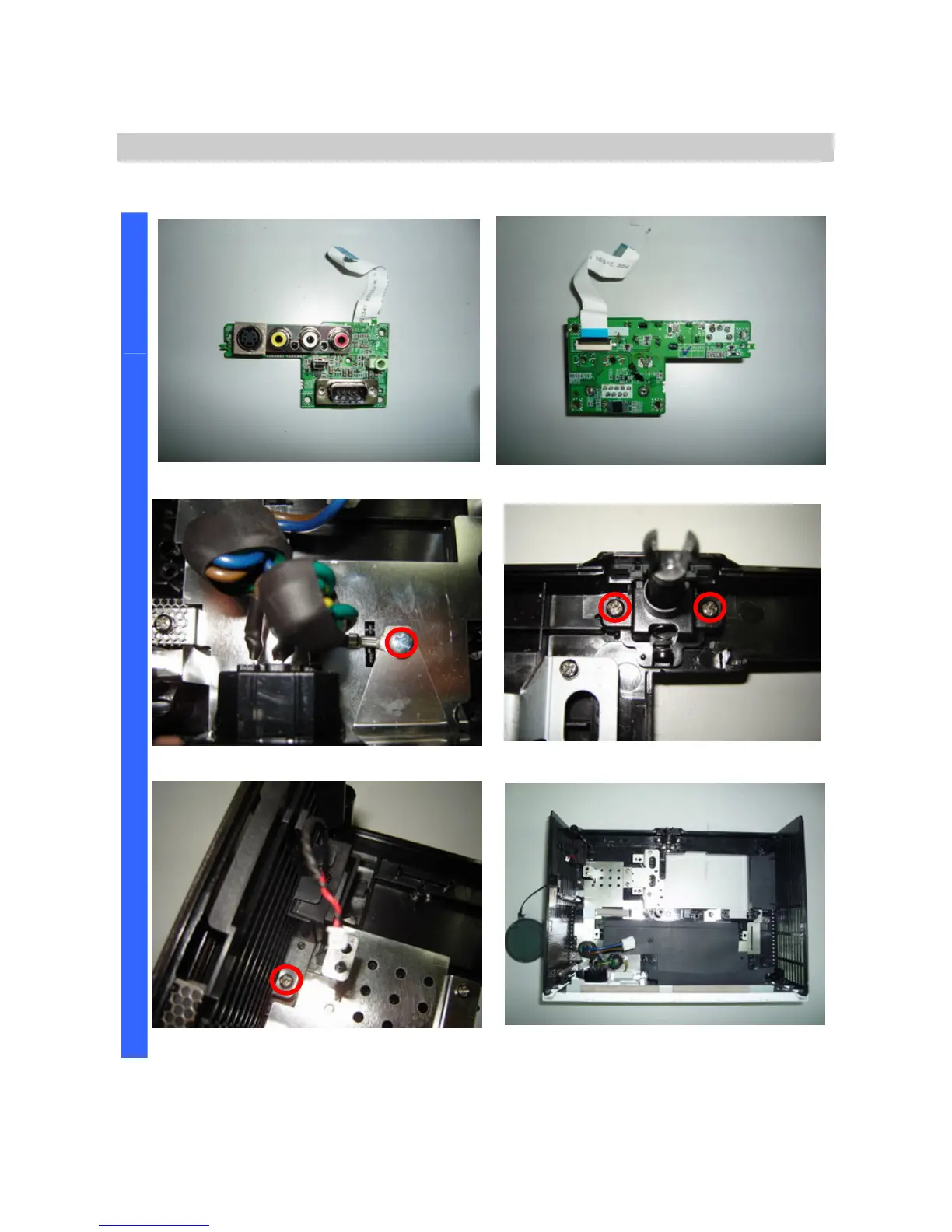

Review the I/O board (Top side). Review the I/O board (Bottom side).
Remove the screw of grounding wire(S24).
Remove two screws of the Adj foot (S25).
D
I
S
A
S
S
E
M
B
L
Y
Remove one screw of the Speaker (S26). Review the Bottom case assembly.
