Optoma ES522 - 6-2 Analog YUV Calibration

Delta Elec. Inc. ES522 & EX532
Company Confidential Optoma___________________ Delta________________
89
2009/06/30
6-2. Calibrate Analog YUV：
Equipment: VG828, must be take off H/V sync terminal from machine.

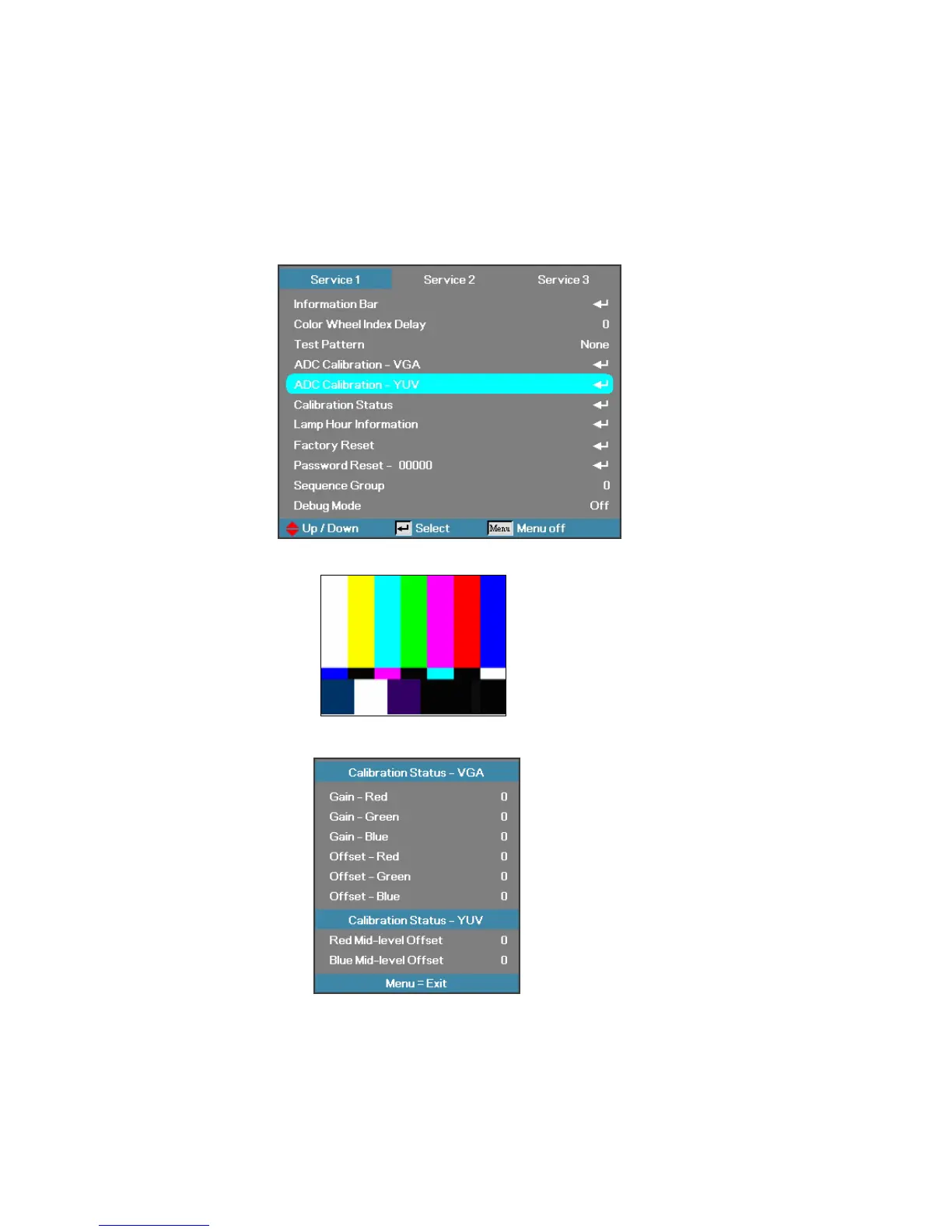

Step 1： In Service 1 Mode select ADC Calibration - YUV. In this menu input pattern with 75﹪SMPTE
pattern for calibrate YUV Source and notice that the input source must be 480i format 。
After input ready press “Enter” key to proceed。
Input Pattern
Step 2 : After complete the OSD will show the picture as follow, if not complete, just close the OSD。
NOTE:
You can select Calibration Status – VGA or Calibration Status –
YUV item to watch the calibrated value at any time。
