Optoma HD21 - Projector Disassembly Procedures; Equipment Needed & Product Overview

HD20/HD200X/HD2200/HD20LV/HD21/HD23
Condential
2-1
Chapter 2
Disassembly Process

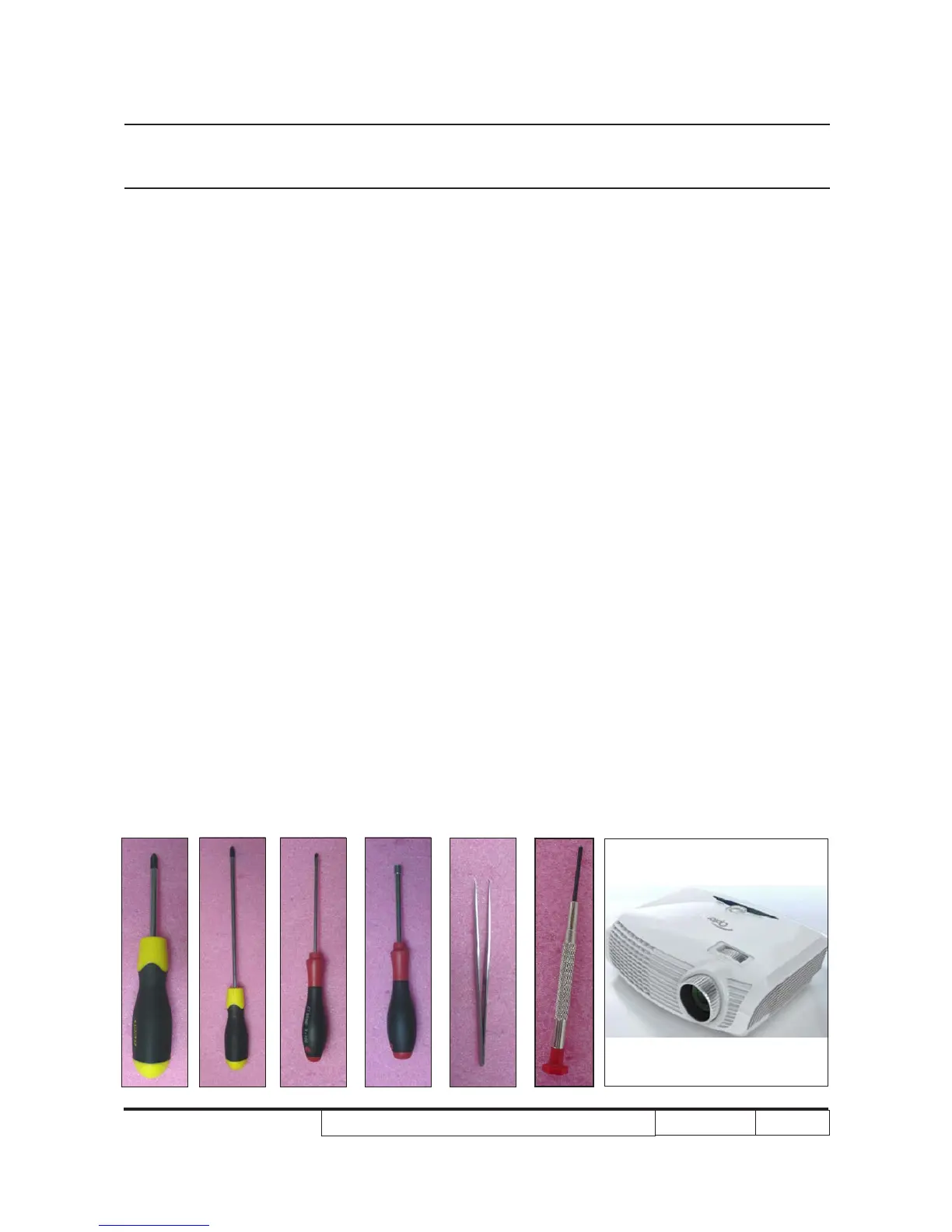

2-1 Equipment Needed & Product Overview
1. Screw Bit (+): 105
2. Screw Bit (+): 107
3. Screw Bit (-): 107
4. Hex Sleeves 5 mm
5. Tweezers
6. Screw Bit (+): No.00
7. Projector
* Before you start: This process is protective level II. Operators should wear electrostatic chains.
* Note: - If you need to replace the main board, you have to record the lamp usage hour.
- As the process of HD20/HD200X/HD2200/HD20LV/HD21/HD23 disassembling is the
same as HD20, we take HD20 for example here.
