Optoma HD82 - Installation; Connecting the Projector to Video Sources

English
11
Installation
Due to the difference
in applications for each
country, some regions
may have different ac-
cessories.
1............................................................... RS232 Cable (Optional Accessory)
2.................................................................... VGA Input Cable (Europe Only)
3.................................................................... DVI Cable (Optional Accessory)
4..........................................................DVI/HDMI Cable (Optional Accessory)
5....................................................................................................Power Cord
Note
Note
A
B
12V TRIGGER
VIDEO
S-VIDEO
RS232
Y/G
Pb/B
Pr/R
VGA/SCART
DVI-D
HDMI 1
HDMI 2
v1.3 with Deep Color
E62405SP
R
VGA,DVI
VGA,DVI

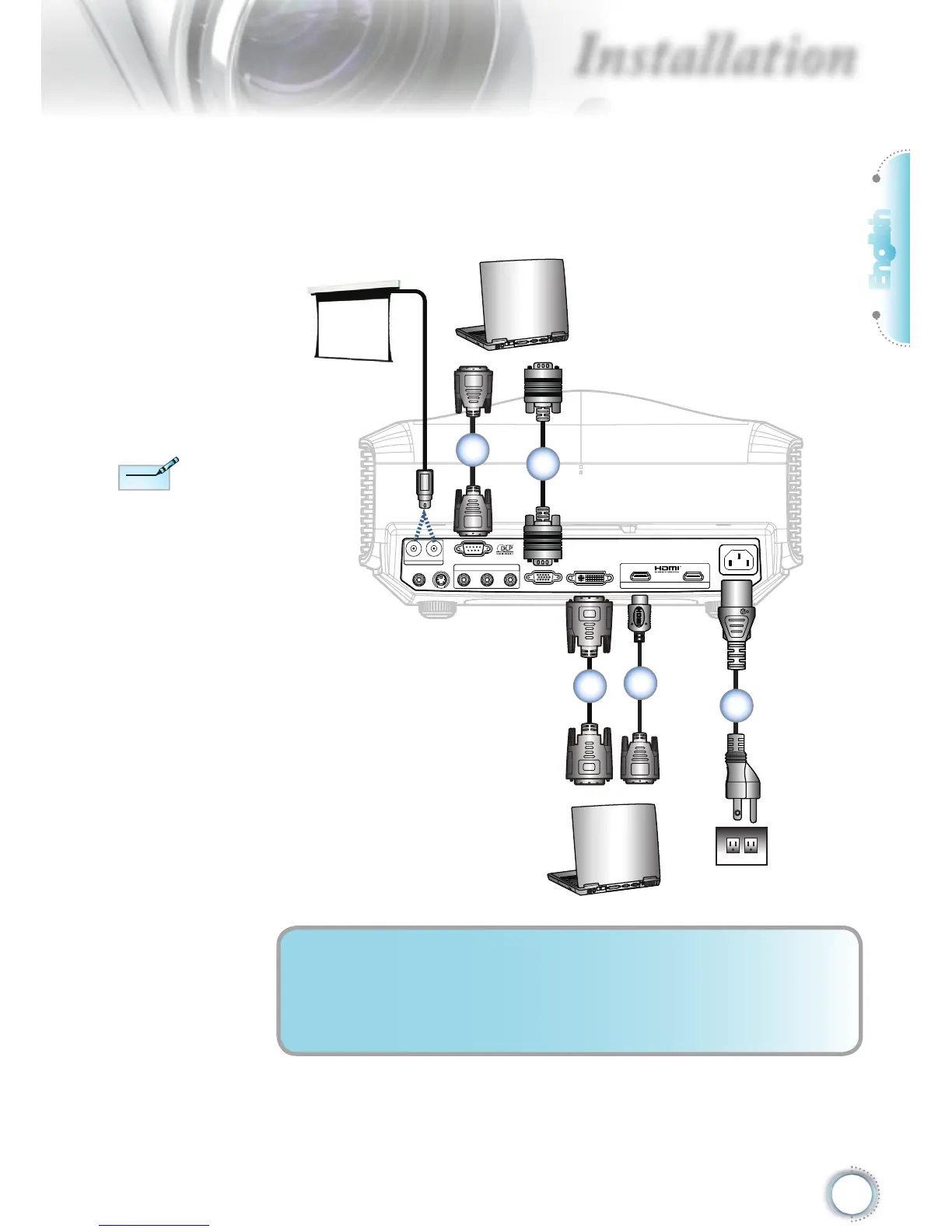

Connecting the Projector
4
5
1
2
3
Connect to Notebook/DVI/VGA-In
