Optoma HD82 - Connecting the Projector to AV Sources

12
Installation
Due to the difference
in applications for each
country, some regions
may have different ac-
cessories.
1...............................RCA Component Cable for YPbPr (Optional Accessory)
2....................... Composite Video Cable (Not Available in European Version)
3............................................................. S-Video Cable (Optional Accessory)
4............................................... SCART RGB/S-Video Adapter (Europe Only)
5.................................................................... DVI Cable (Optional Accessory)
6............................................................................HDMI Cable (Europe Only)
7....................................................................................................Power Cord
Note
Note
A
B
12V TRIGGER
VIDEO
S-VIDEO
RS232
Y/G
Pb/B
Pr/R
VGA/SCART
DVI-D
HDMI 1
HDMI 2
v1.3 with Deep Color
E62405SP
R
DVD player, Set-top Box
HDTV receiver
DVD player, Set-top Box
HDTV receiver
Video Output
S-Video Output

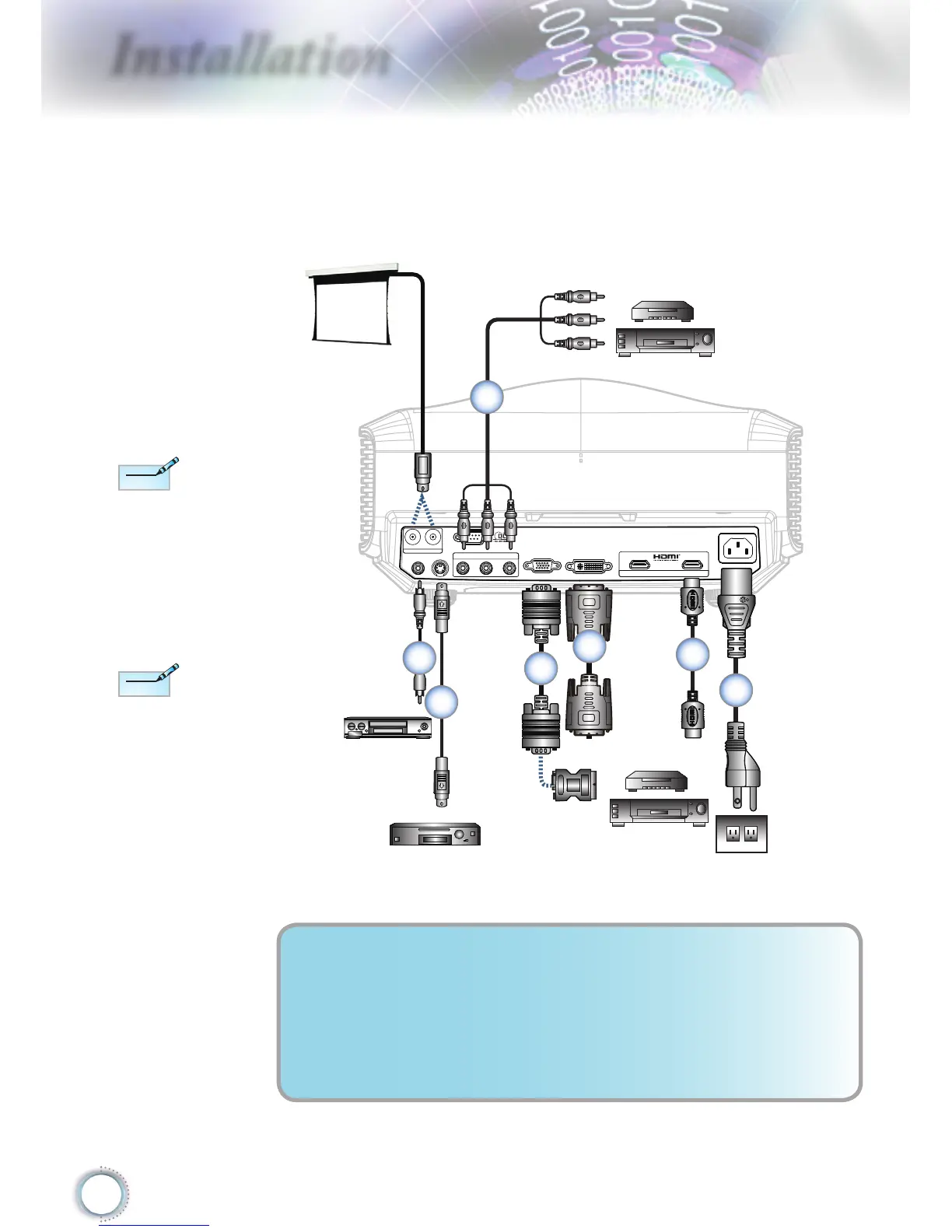

Connecting the Projector
4
5
1
2
3
Connect to Video/SCART
6
7
12V Trigger B is pro-
grammable trigger.
Note
Note
