Introduction
A
B
12V TRIGGER
VIDEO
S-VIDEO
RS232
Y/G
Pb/B
Pr/R
VGA/SCART
DVI-D
HDMI 1
HDMI 2
v1.3 with Deep Color

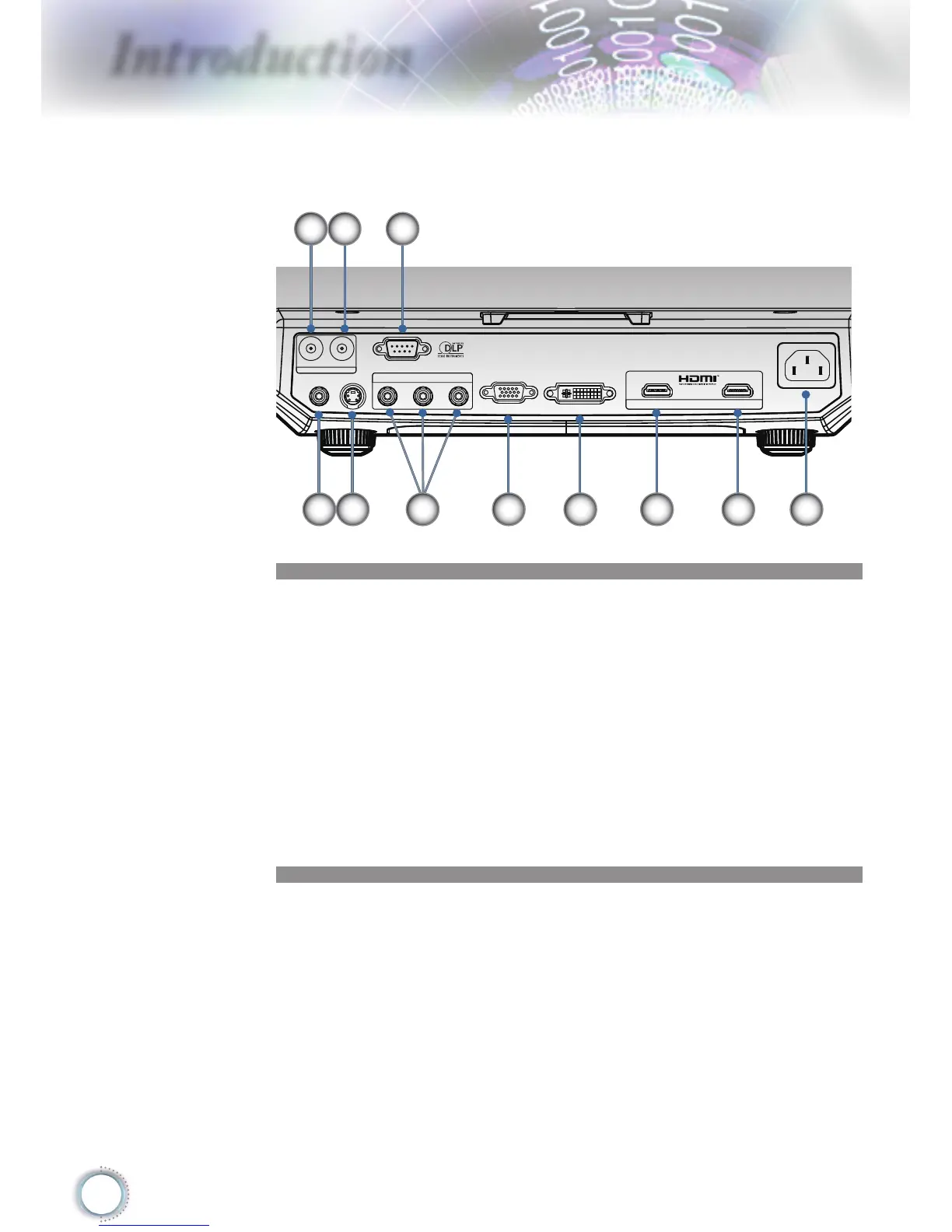

Connection Ports
1. 12V Trigger A
2. 12V Trigger B
3. RS232
4. Composite Video
5. S-Video
6. Component Video
7. VGA Input
8. DVI-D Input (PC Digital and DVI-HDCP)
9. HDMI 1
10. HDMI 2
11. Power Socket
1
4 11
2
5 7 8 9 106
3
