Optoma HD82 - Adjusting Projection Image Size

18
User Controls

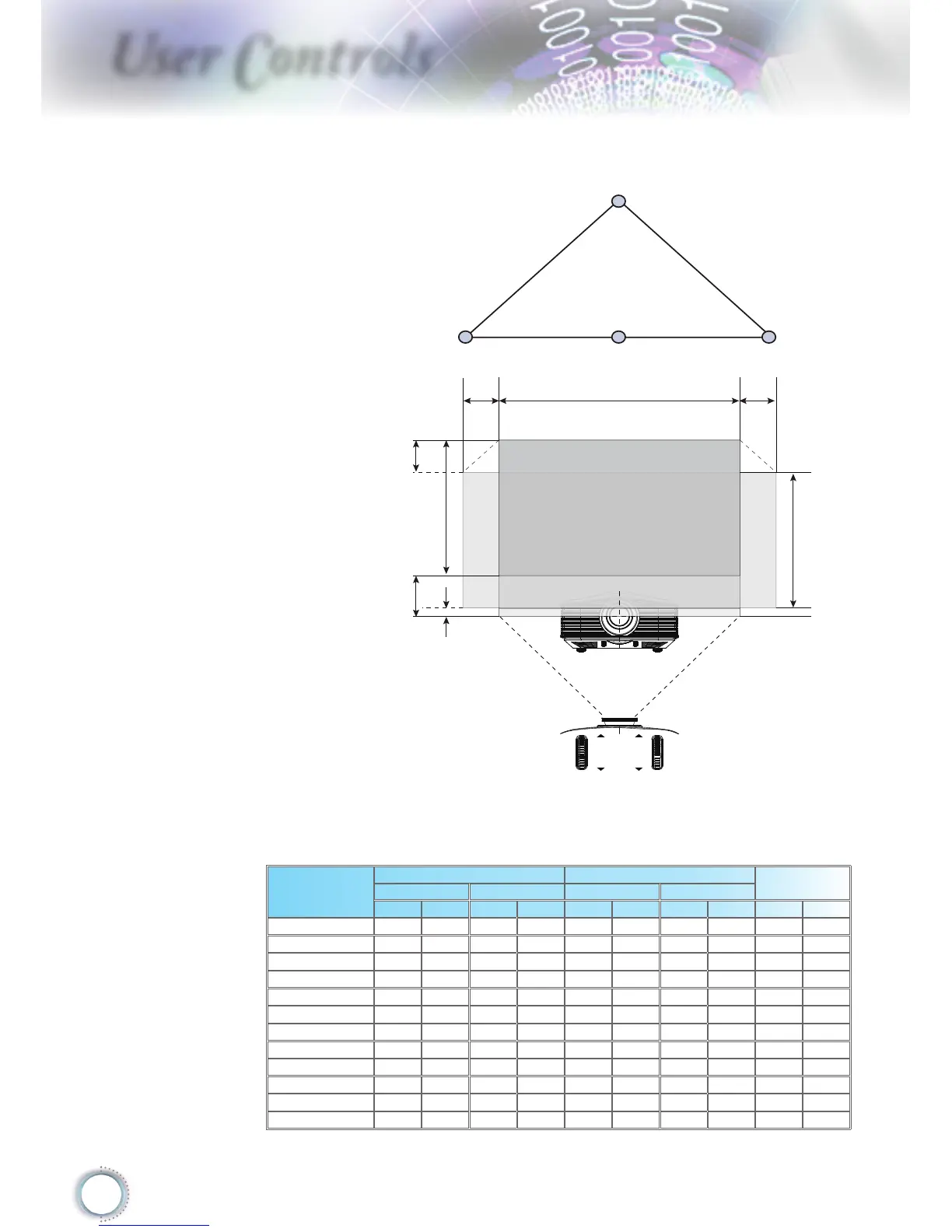

This graph is for user’s reference only.
Diagonal
length (inch) size
of 16:9 Screen
Screen Size W X H (16:9) Projection distance (D)
Offset
(Hd)
(m) (feet) (m) (feet)
Width Height Width Height wide tele wide tele (m) (feet)
30 0.66 0.37 2.18 1.23 - 1.51 - 4.97 0.11 0.37
45 1.00 0.56 3.27 1.84 1.49 2.27 4.88 7.45 0.17 0.55
50 1.11 0.62 3.63 2.04 1.65 2.52 5.43 8.28 0.19 0.61
60 1.33 0.75 4.36 2.45 1.98 3.03 6.51 9.93 0.22 0.74
70 1.55 0.87 5.08 2.86 2.32 3.53 7.60 11.59 0.26 0.86
80 1.77 1.00 5.81 3.27 2.65 4.04 8.68 13.24 0.30 0.98
90 1.99 1.12 6.54 3.68 2.98 4.54 9.77 14.90 0.34 1.10
100 2.21 1.25 7.26 4.09 3.31 5.05 10.85 16.55 0.37 1.23
120 2.66 1.49 8.72 4.90 3.97 6.05 13.02 19.86 0.45 1.47
150 3.32 1.87 10.89 6.13 4.96 7.57 16.28 24.83 0.56 1.84
200 4.43 2.49 14.53 8.17 6.61 10.09 21.70 33.11 0.75 2.45
300 6.64 3.74 21.79 12.26 9.92 15.14 32.55 49.66 1.12 3.68
Screen Height
(H)
100%
5%
30%
Distance
(L)
Screen
Maximum Shift
25%
15%W 15%W
Left Side Right Side
Screen Width
(W)
130%(V), 0%(H)
-15%(H) 15%(H)
105%(V)
UP/DOWN
RIGHT/LEFT
H
H x 15%
V
H x 15%
V
V x 25%
Offset max=V x 30%
Offset min=V x 5%
▀■ PureShift Range Diagram
Adjusting Projection Image Size
