44
-

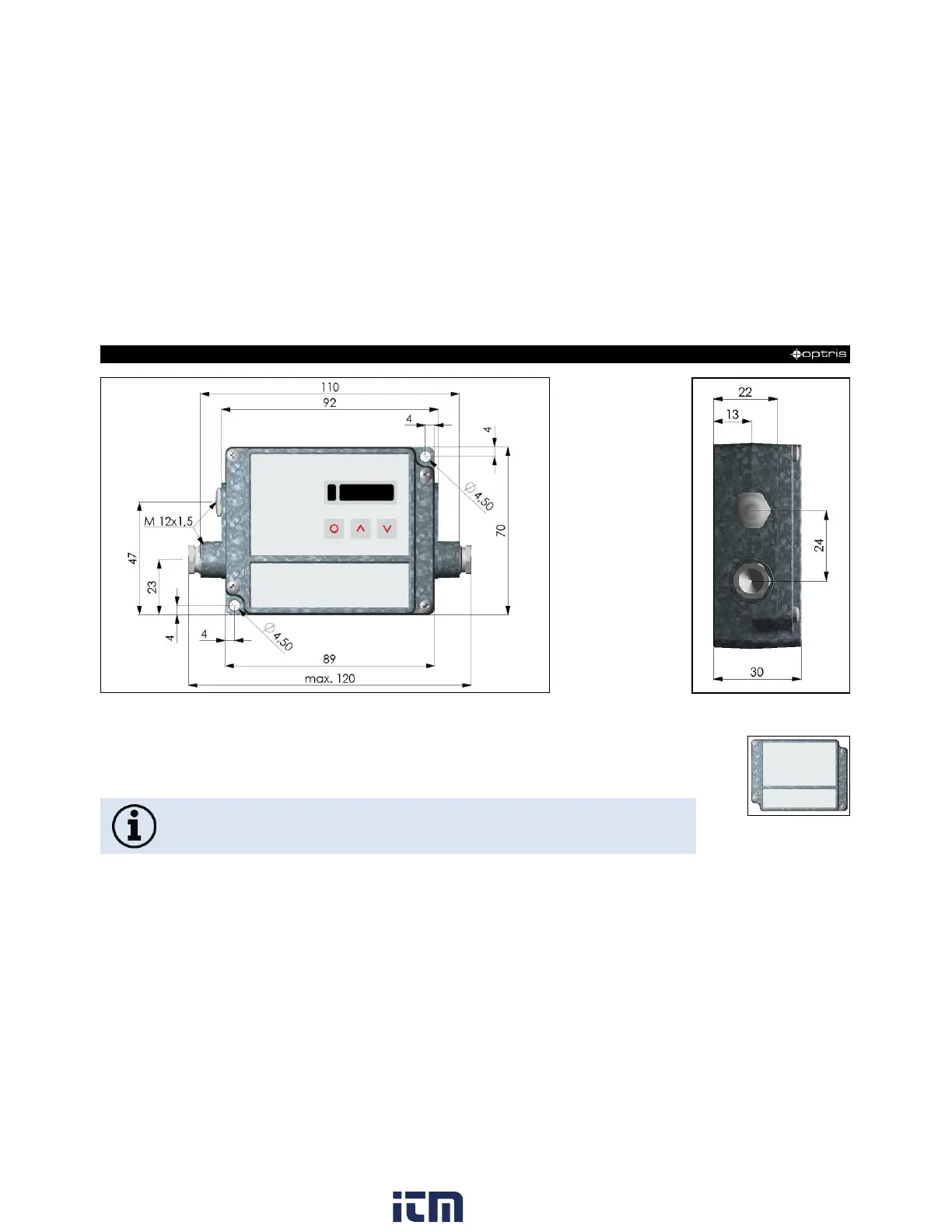

Electronic box
The
electr
onic
box
is
also
available
with
closed
cover
(display
and
programming
keys
with no access from outs
ide) [ACCTCO
V].
On
the
CT
models
LT02,
LT02H
and
LT10H
the
head
cable
must
not
be
moved during the measure
ment.
w
w
w
.
.
c
o
m
in
fo
rm
at
io
n@
it
m.
co
m
1.
80
0.
56
1.
81
87
43
45
Table of Contents
Table of Contents
3
General Information
8
Description
8
Warranty
9
Scope of Supply
9
Maintenance
10
Model Overview
11
Factory Default Settings
13
Technical Data
15
General Specifications
15
Electrical Specifications
17
Measurement Specifications [LT Models]
18
Measurement Specifications [Ctfast/ Cthot]
20
Measurement Specifications [1M/ 2M/ 3M/ 4M Models]
22
Measurement Specifications [G5/ P7 Models]
25
Optical Charts
26
CF Lens and Protective Window
38
Mechanical Installation
42
Mounting Accessories
46
Air Purge Collars
48
Further Accessories
50
Electrical Installation
57
Cable Connections
57
Designation [Models LT/ G5/ P3/ P7]
57
Designation [Models 1M/ 2M/ 3M]
58
Designation [Models 4M]
59
Power Supply
60
Cable Assembling
61
Ground Connection
62
2M, 3M Models
62
Model
62
LTF, LTH, G5, P3, P7 Models
63
Exchange of the Sensing Head
64
Entering of the Calibration Code
64
Sensing Head Cable
65
Outputs and Inputs
66
Analog Outputs
66
Output Channel 1
66
Output Channel 2 [LT/ G5/ P3/ P7 Only]
66
Digital Interfaces
67
Relay Outputs
67
Functional Inputs (Not for CT 4M)
68
I/O Pins (Only for CT 4M)
69
Alarms
70
Output Channel 1 and 2 [Channel 2 on LT/ G5/ P3/ P7 Only]
70
Open Collector Output / AL2
72
Operating
73
Sensor Setup
73
Error Messages
84
Irmobile App
85
Software Compactconnect/ Compactplus Connect
87
Installation
87
Communication Settings
89
Serial Interface
89
Protocol
89
ASCII Protocol
90
Saving of Parameter Settings
91
Basics of Infrared Thermometry
92
Emissivity
93
Definition
93
Determination of Unknown Emissivity
93
Characteristic Emissivity
94
Appendix A - Table of Emissivity for Metals
95
Appendix B - Table of Emissivity for Non-Metals
97
Appendix C - Smart Averaging
98
Appendix D - Declaration of Conformity
99
4
