Mechanical Installation 51-

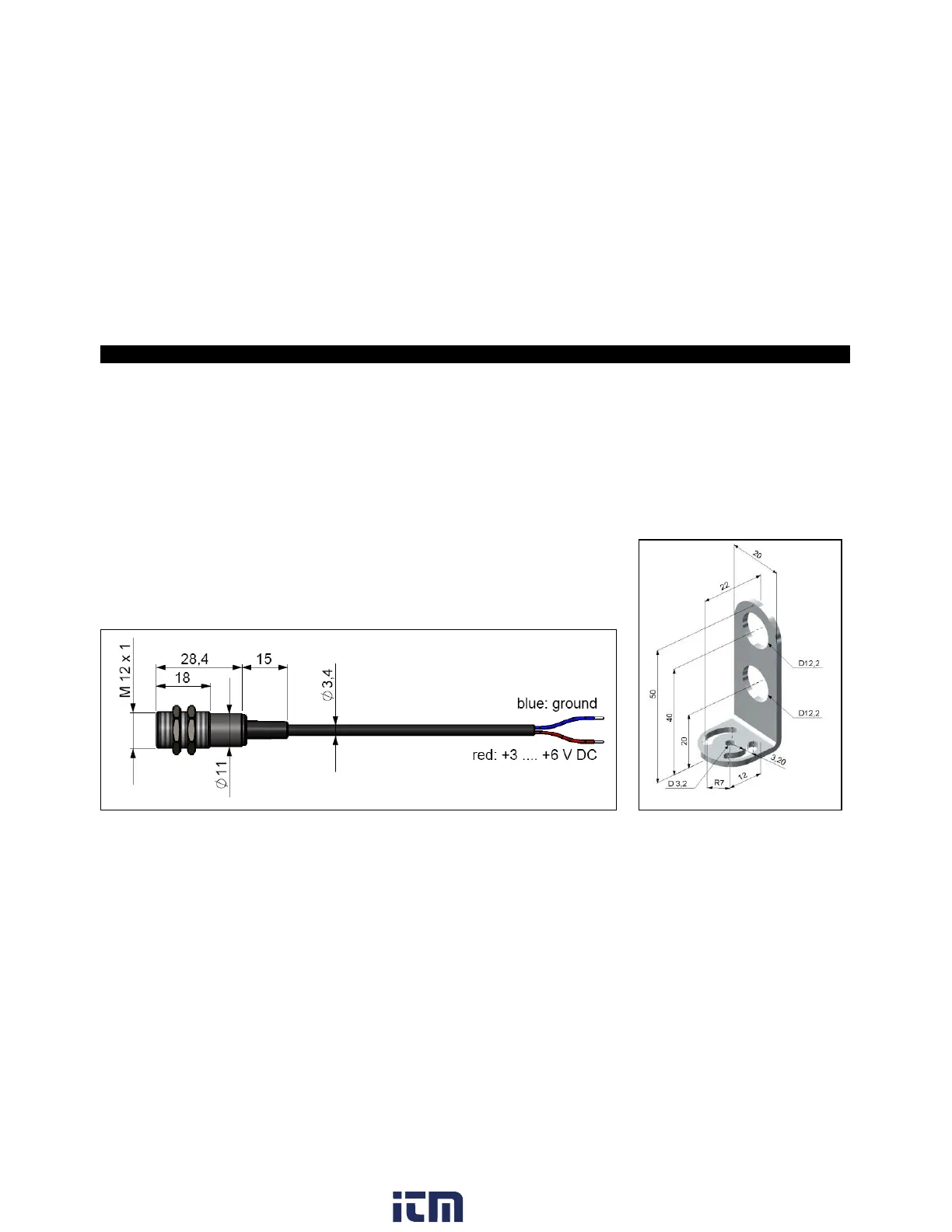

OEM-Laser-Sightingtool
The OEM-Laser-Sighting tool is available with 3,5 m [ACCTOEMLST] and 8 m connection cable
[ACCTOEMLSTCB8]. The laser can be connected to the pins 3V SW or PINK (only for CT 4M) and GND
[►4 Electrical Installation] and switched on and off via the programming keys or via the software.
The special double-hole mounting bracket [ACCTFB2] allows a simultaneous mounting of the CT sensing
head and the laser head.
