Install the Storage Server Into the Slide-Rail Assemblies
3.
Insert the mounting brackets into the slide-rails, and then push the storage
server into the rack until the mounting brackets encounter the slide-rail stops
(approximately 12 inches, or 30 cm).

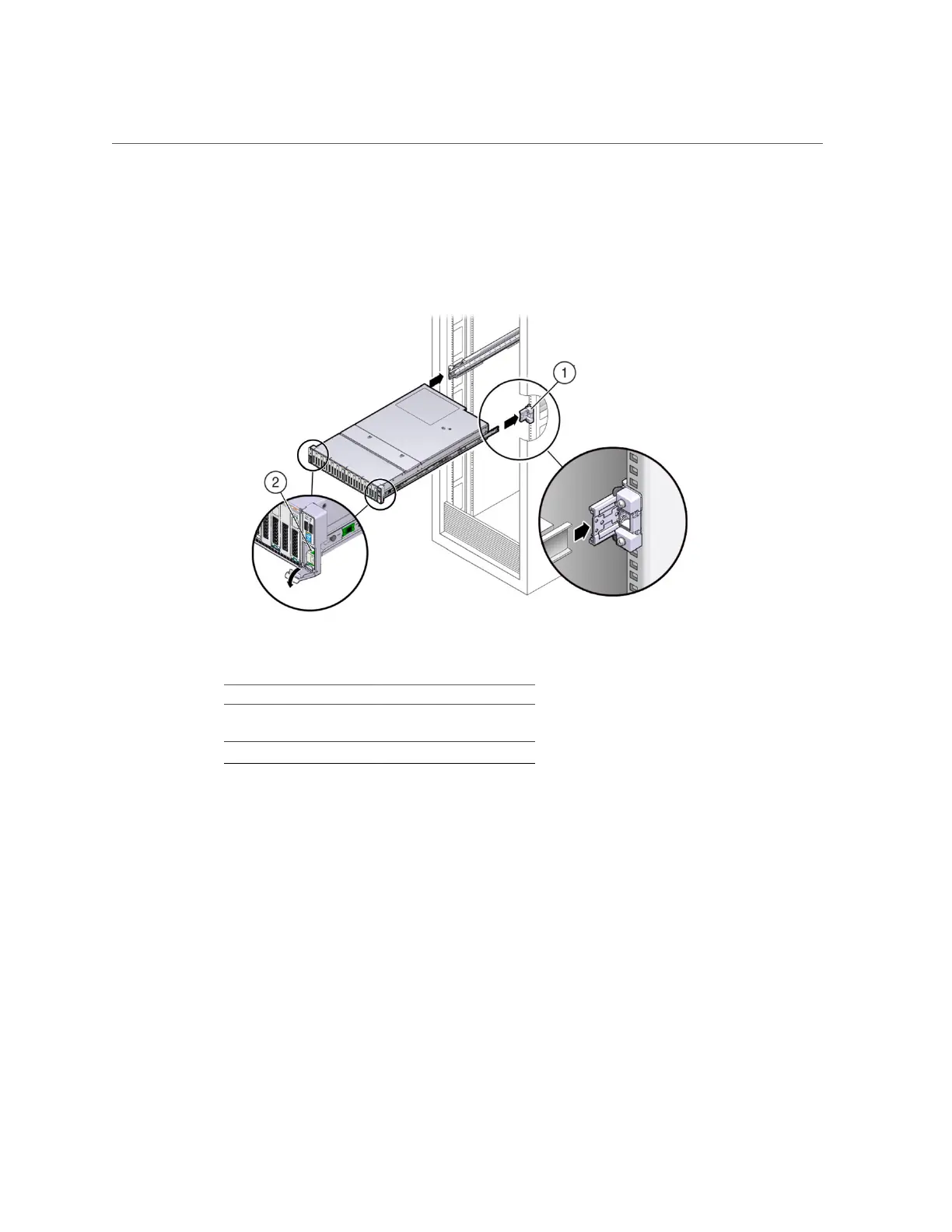

Callout Description
1 Inserting mounting bracket
into slide-rail
2 Slide-rail release lever
4.
Simultaneously pull down and hold the slide-rail release levers on each
mounting bracket while you push the storage server into the rack. Continue
pushing the storage server into the rack until the slide-rail locks (on the front of
the mounting brackets) engage the slide-rail assemblies.
Installing the Storage Server Into a Rack 39
