Oracle EXADATA X5-2 - Page 41

Install the Cable Management Arm

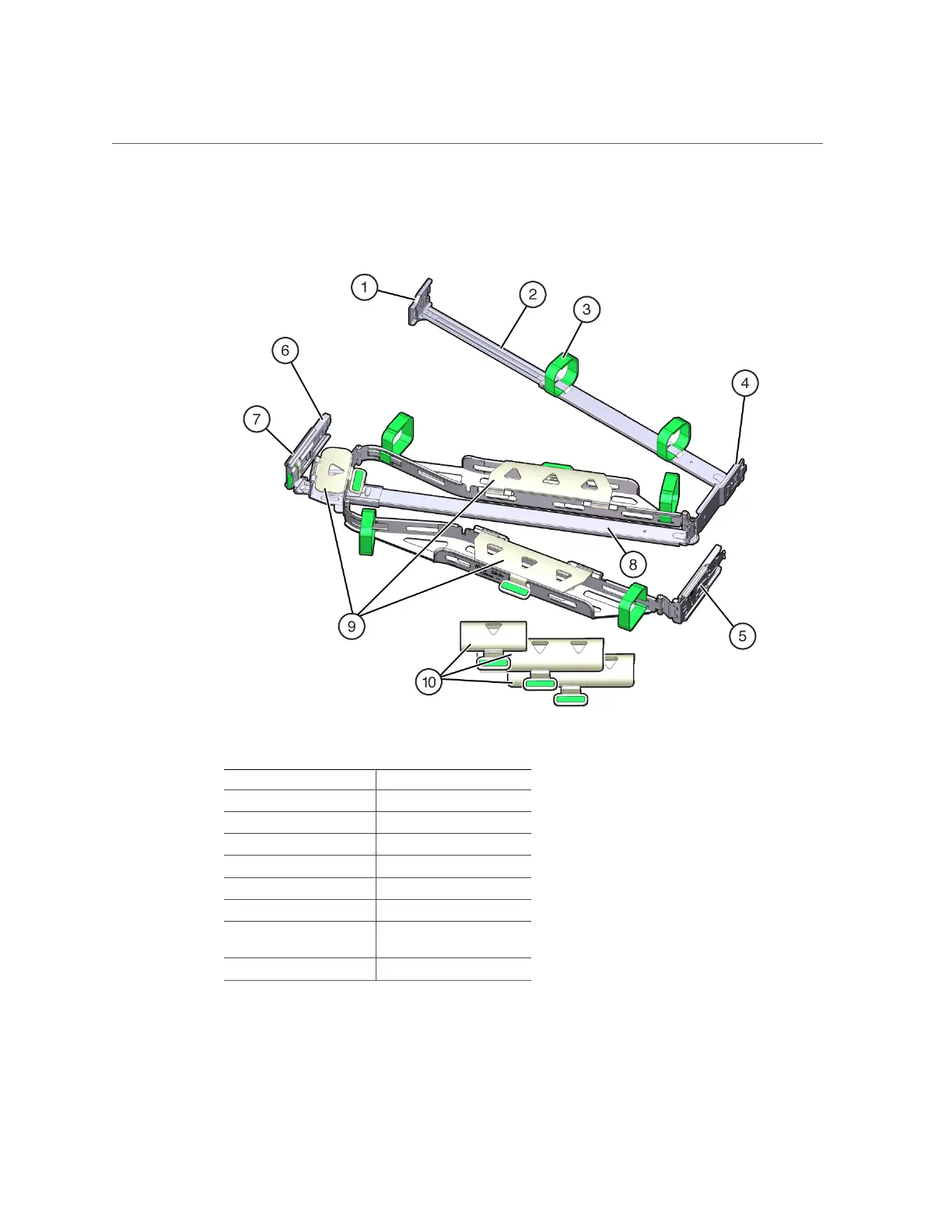

The following figure shows the CMA components.
Callout Description
1 Connector A
2 Front slide bar
3 Velcro straps (6)
4 Connector B
5 Connector C
6 Connector D
7 Slide-rail latching bracket
(used with connector D)
8 Rear slide bar
Installing the Storage Server Into a Rack 41
