Install the Cable Management Arm
b.
Gently tug on the right side of the front slide bar to verify that connector A is
properly seated.
Callout Description
1 Connector A tab
2 Left slide-rail front slot
8.

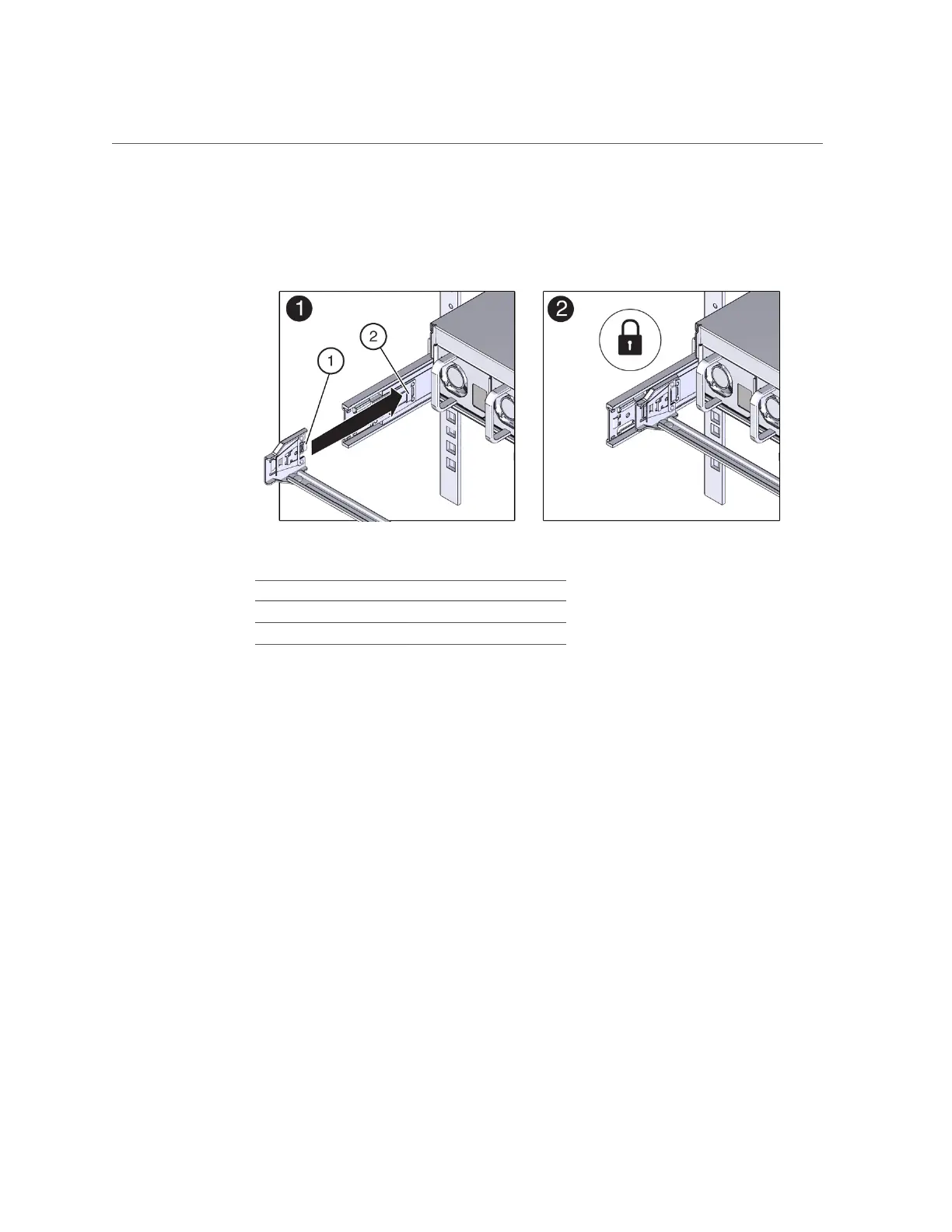

To install the CMA's connector B into the right slide-rail:
a.
Insert the CMA's connector B into the front slot on the right slide-rail until it
locks into place with an audible click [frames 1 and 2].
The connector B tab (callout 1) goes into the slide-rail's front slot (callout 2).
Installing the Storage Server Into a Rack 45
