Remove the Cable Management Arm
Callout Description
2 Slide-rail latching bracket
release tab (labeled PUSH)
b.
Use your right hand to support the CMA and use your left thumb to push
in (toward the left) on the connector D latching bracket release tab labeled
PUSH (callout 2), and pull the latching bracket out of the left slide-rail and
put it aside [frames 3 and 4].
6.
To disconnect connector C:
a.
Place your left arm under the CMA to support it.
b.

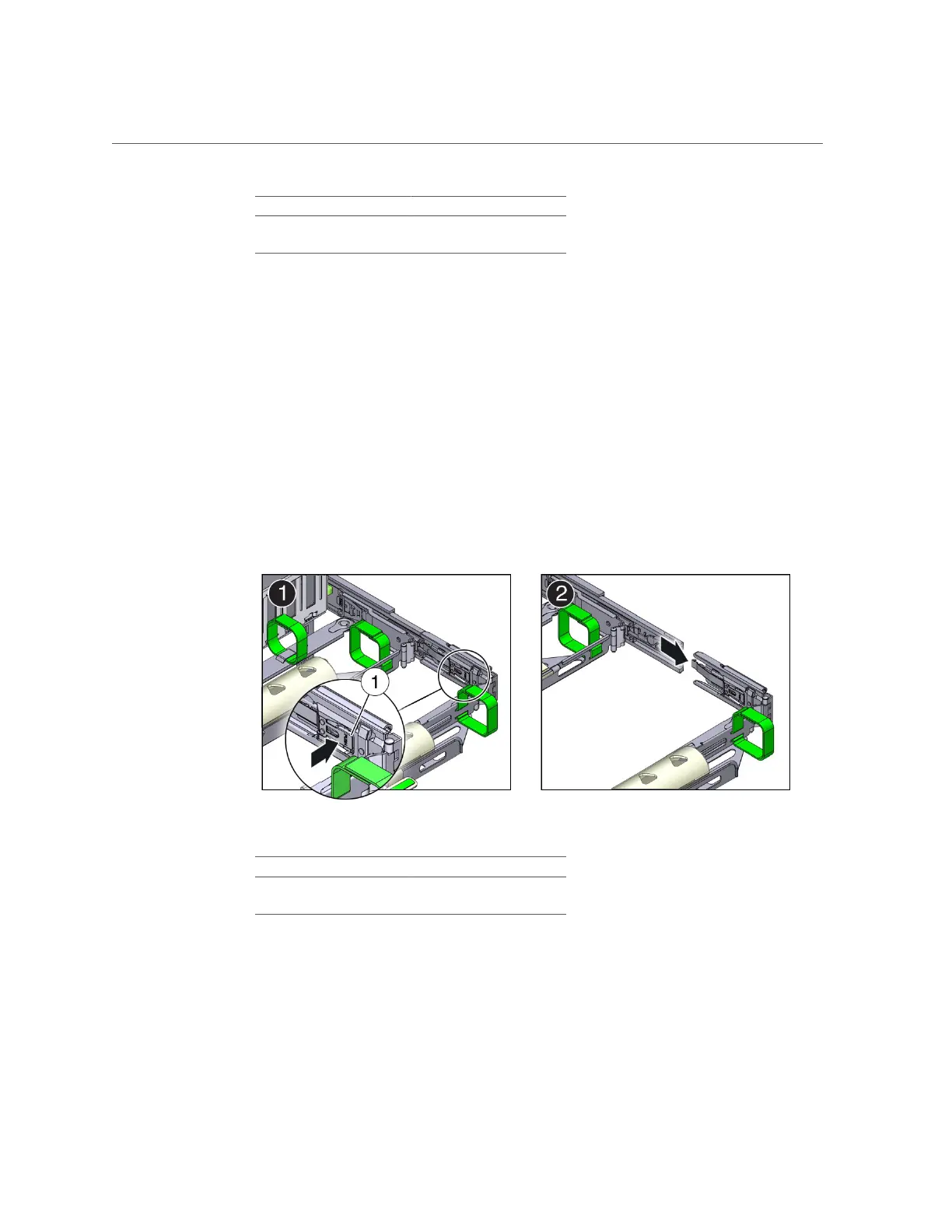

Use your right thumb to push in (toward the right) on the connector C
release tab labeled PUSH (callout 1), and pull connector C out of the right
slide-rail [frames 1 and 2].
Callout Description
1 Connector C release tab
(labeled PUSH)
7.
To disconnect connector B:
a.
Place your right arm under the CMA to support it and grasp the rear end of
connector B with your right hand.
