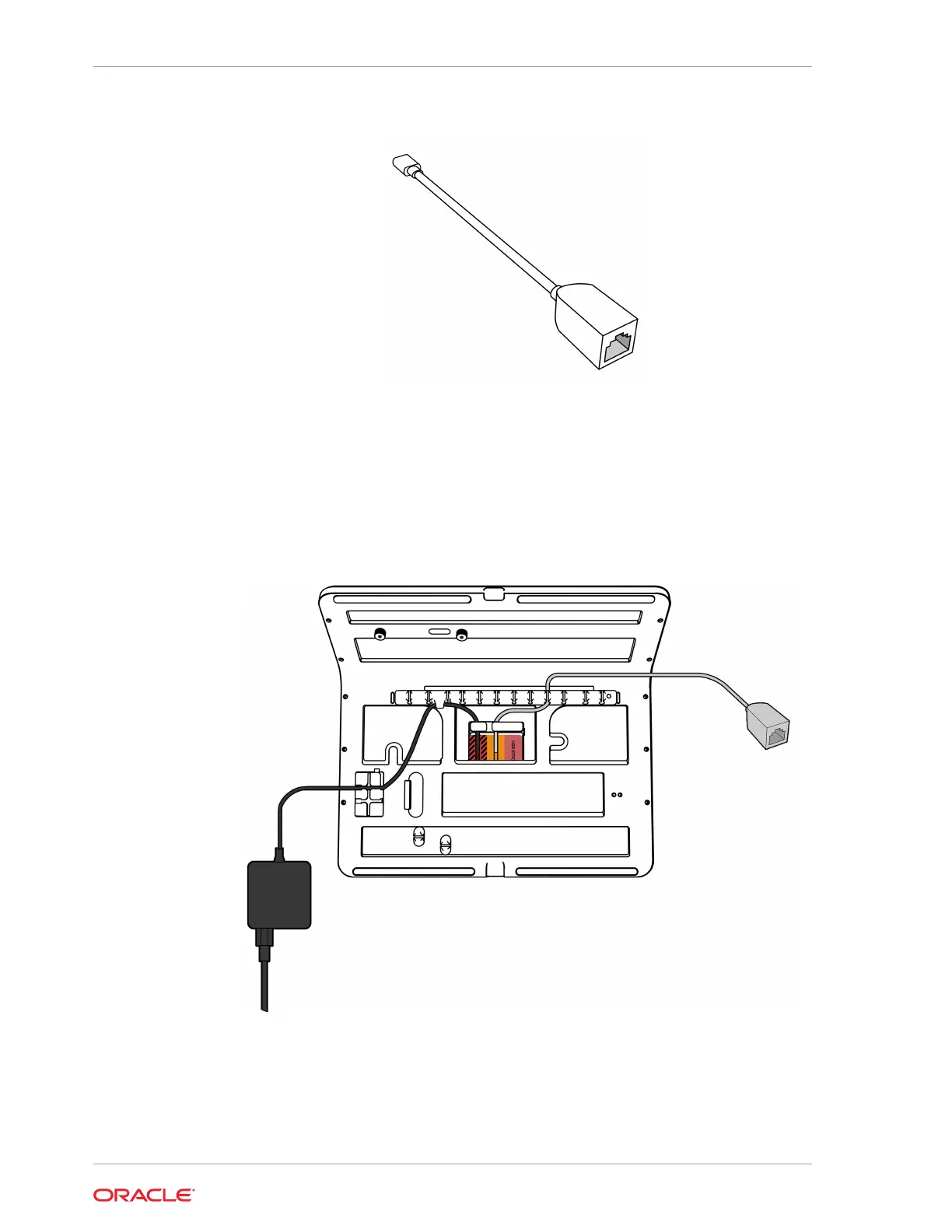

Figure 4-14 Ethernet Adapter Cable for Oracle MICROS Workstation 8 Series
1. Connect the Ethernet Adapter Cable for Oracle MICROS Workstation 8 Series to
the Network port on the Workstation 820. Follow the cable routing path as shown
below.
Figure 4-15 Connecting the Ethernet Adapter Cable for Oracle MICROS
Workstation 8 Series to the Workstation 820
2. Connect an Ethernet cable to the Ethernet Adapter Cable for Oracle MICROS
Workstation 8 Series, and then plug the Ethernet cable into an Ethernet outlet,
hub, or other networking device.
