Mounting the Workstation 820 and Peripheral Expansion Module
on the Low Profile Stand
1. Unpack the Workstation 820, Low Profile Stand, and Peripheral Expansion Module.
Retain the boxes and foam for potential storage or shipping needs.
2. Insert the Workstation 820 into the four openings on the Low Profile Stand mounting plate
until it clicks into place, and then use the Oracle 2.5mm hex key or equivalent to lock the
assembly (optional).

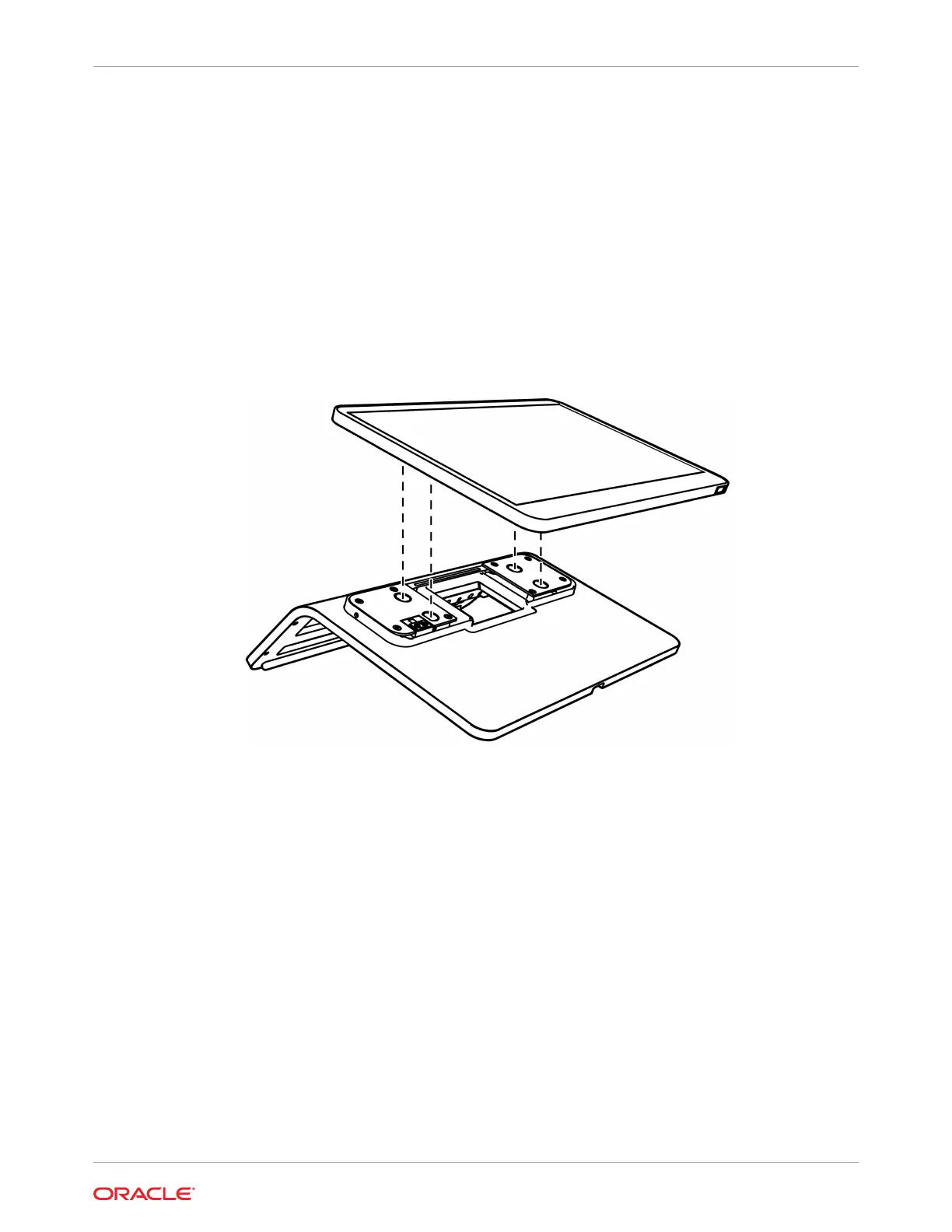

Figure 4-16 Mounting the Workstation 820 on the Low Profile Stand
3. Place the Low Profile Stand workstation-side down on a flat, non-abrasive surface, and
then slide the Peripheral Expansion Module into the mounting slot on the stand.
Chapter 4
Mounting the Workstation 820 and Peripheral Expansion Module on the Low Profile Stand
4-11
