Customer Facing Display for Low Profile Stand
1. Locate the Customer Facing Display mounting point cover with the Oracle logo.

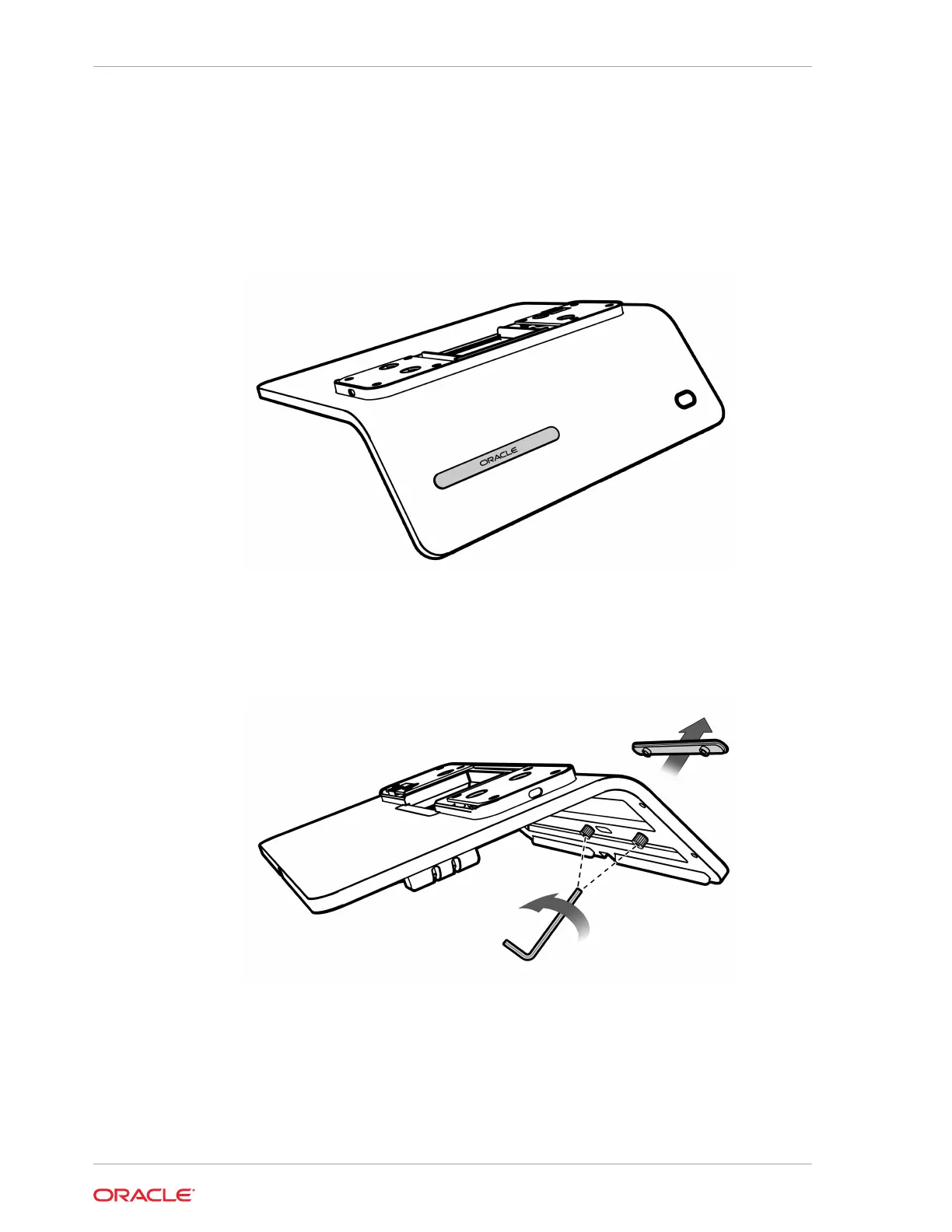

Figure 5-2 Locating the Customer Facing Display mounting point cover
2. Use the Oracle 2.5mm hex key or equivalent to loosen the stand captive screws
holding the cover in place, and then remove the cover.
Figure 5-3 Removing the Customer Facing Display mounting point cover
3. Feed the Customer Facing Display cable through the opening in the mounting
point, and then insert the Customer Facing Display into the captive screws. Use
the Oracle 2.5mm hex key or equivalent to tighten the stand captive screws.
Chapter 5
Customer Facing Display for Low Profile Stand
5-2
