ZS3-2 Controller Hardware Overview

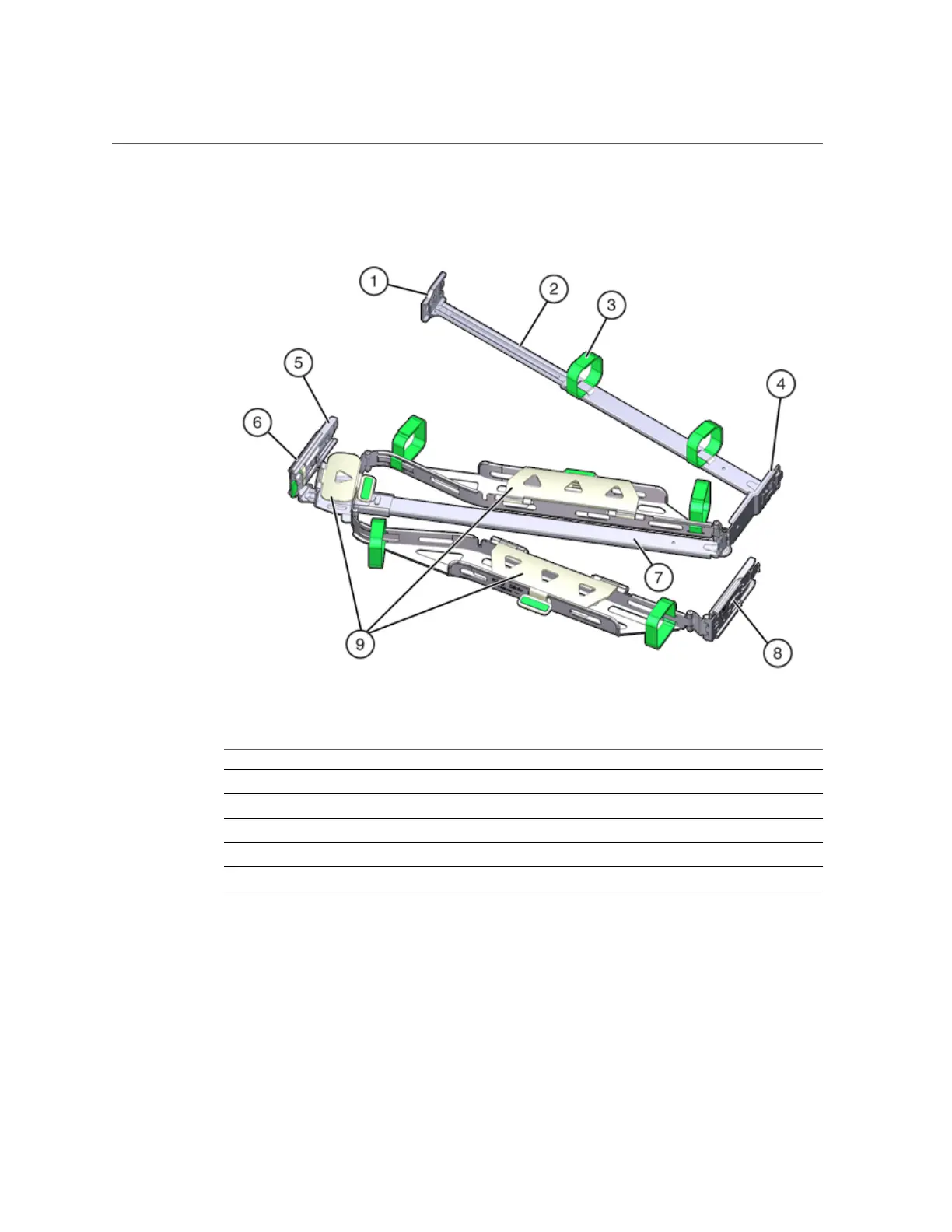

FIGURE 35
ZS3-2 Controller Optional Cable Management Arm
Figure Legend
1 Connector A 6 Connector D
2 Front slide bar 7 Slide-rail latching bracket (used with connector D)
3 Velcro straps (6) 8 Rear slide bar
4 Connector B 9 Cable covers
5 Connector C
ZS3-2 Attached Storage
The ZS3-2 controller connects to external storage through a 4-port (4x4) SAS-2 HBA. You
can attach from one to eight HDD-only or HDD/SSD Log cache disk shelves to the controller.
Servicing the ZS3-2 Controller 171
