7420 Controller Hardware Overview

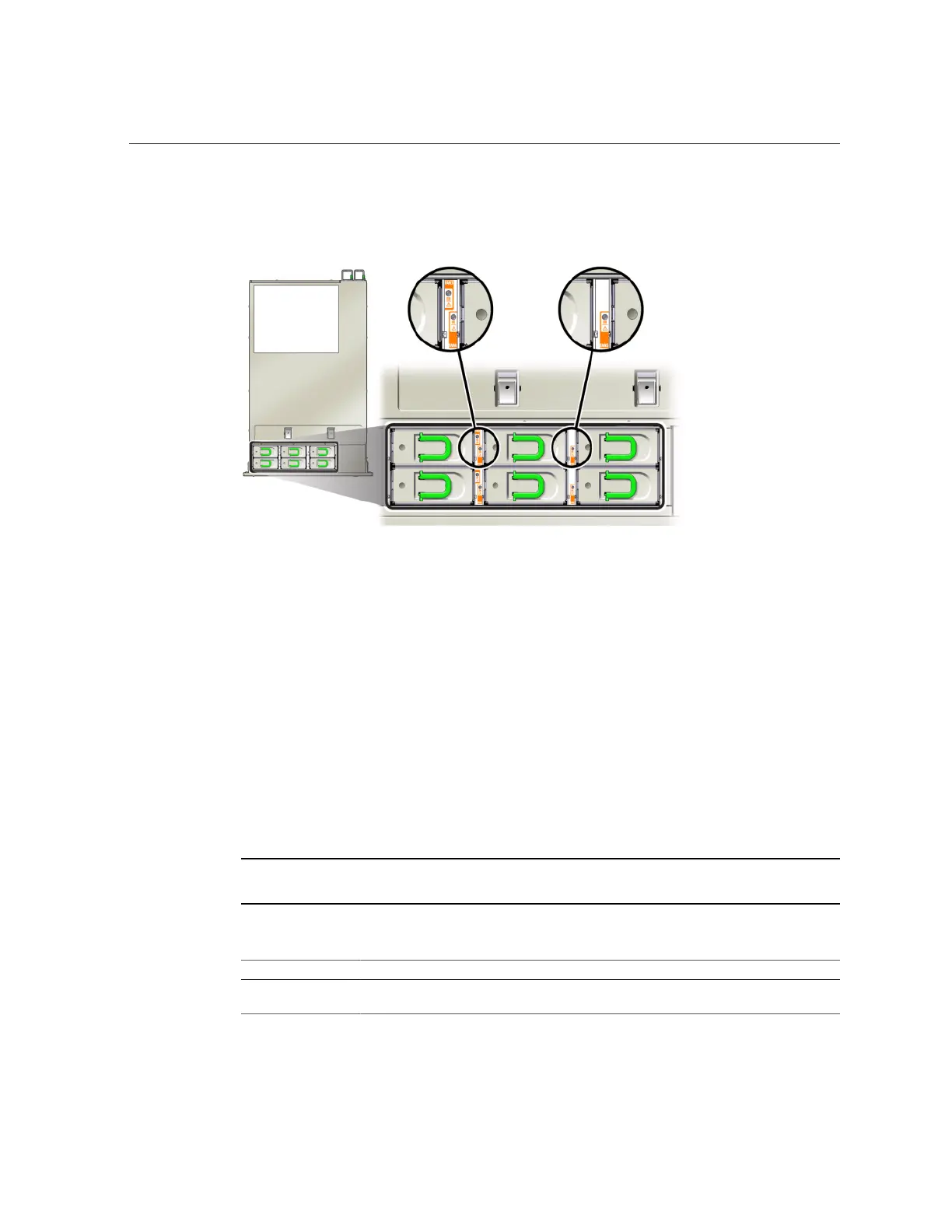

FIGURE 44
7420 Controller Fan Module LEDs
■
Front and rear Service Action Required LEDs
■
Fan Module Service Action Required (TOP) LED on the front of the server
■
Fan Fault LED on or adjacent to the faulty fan module
The system Overtemp LED might light if a fan fault causes an increase in system operating
temperature.
7420 PCIe I/O Cards
7420 PCIe I/O Options - The 7420 controller has ten PCIe slots. This table describes base and
optional PCIe card slots for standalone and cluster configurations.
Note - The 7420 M2 reserves slot 0 for a SAS-2 internal HBA, and slots 1 and 8 for two SAS-2
external HBAs.
TABLE 31
7420 Controller PCIe Options
Slot Mfg Part Number Description Max Note
0 7054001 8-port 6Gb/s SAS-2
internal HBA
1 Slot 0 of the 7420
M2 is reserved for
224 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
