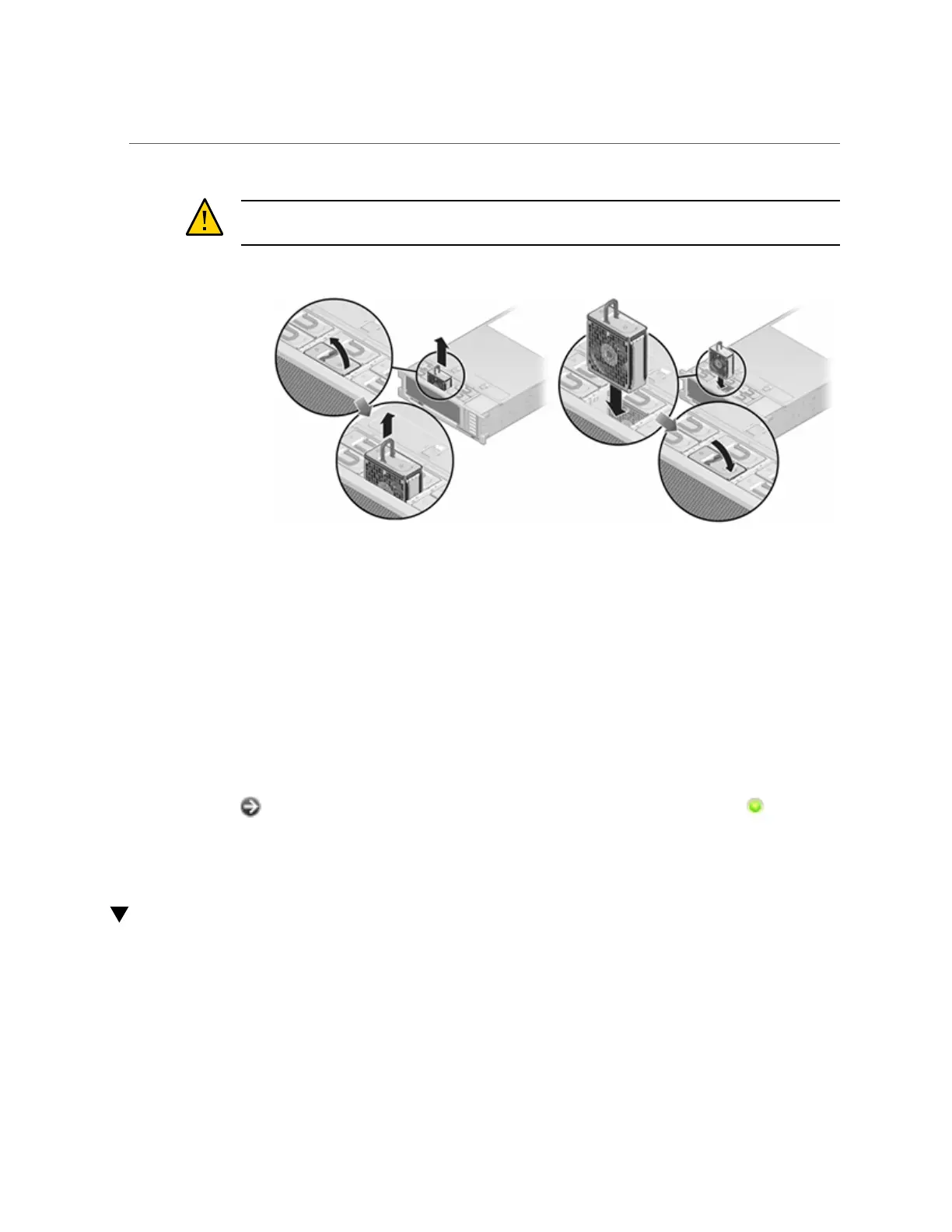

Replacing a 7x20 Power Supply
Caution - The fan module must be replaced within 60 seconds because the storage controller
might overheat and shut down.
b.
Unlock and insert the 7420 fan module into the slot and apply firm pressure
to fully seat it.
c.
On the replaced fan module, verify that the Fan OK indicator is lit, and that
the fault indicator is not lit.
6.
Verify that the controller's Top Fan status indicator, Service Required status
indicators, and the Locator status indicator/Locator button are not lit.
7.
Push the release tabs on the side of each rail and slowly slide the storage
controller into the rack.
8.
Go to the Maintenance > Hardware screen of the BUI. Click the right-arrow icon
for the controller and then click Fan to verify that the online icon is green
for the newly installed fan module.
9.
If a fault does not self-clear, see “Repairing Active Problems” on page 37.
Replacing a 7x20 Power Supply
Storage controllers are equipped with redundant hot-swappable power supplies. If a power
supply fails and you do not have a replacement, leave the failed power supply installed to
