7320 Controller Hardware Overview

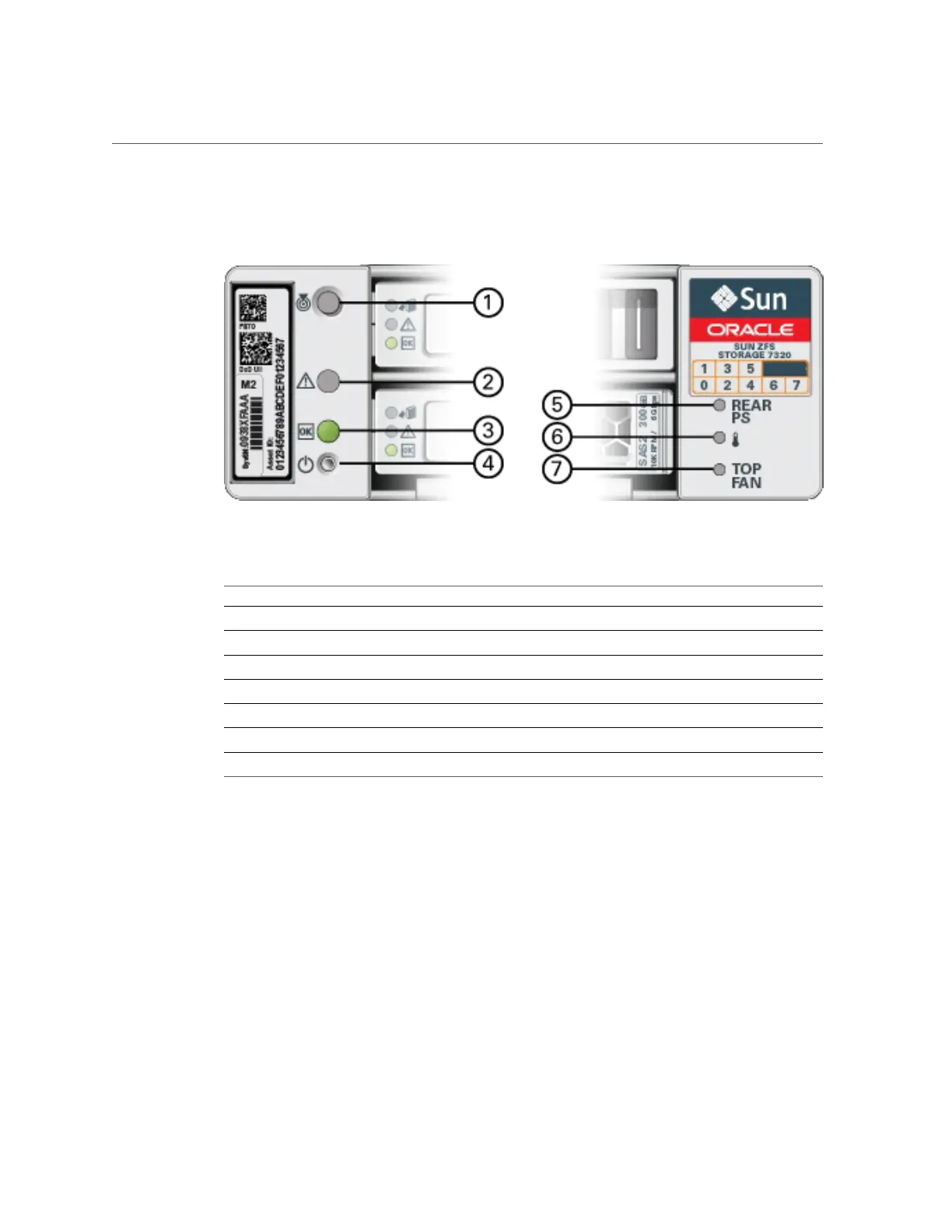

FIGURE 46
7320 Controller Front Panel LEDs
Figure Legend
1 Locate Button/LED
2 Service Required LED (amber)
3 Power/OK LED (green)
4 Power Button
5 Rear Power Supply
6 System Overtemperature LED
7 Top Fan
The following figure and legend identify the 7320 front panel drive locations. Two mirrored
hard disk drives (HDDs) that store the operating system reside in slots 0 and 1. Up to four read-
optimized cache solid state drives (SSDs) fill slots 2 through 5, in order. Slots 6 and 7 are empty
and must contain drive fillers.
Servicing the 7x20 Controller 233
