Replacing a Faulty Disk Shelf Drive

8.

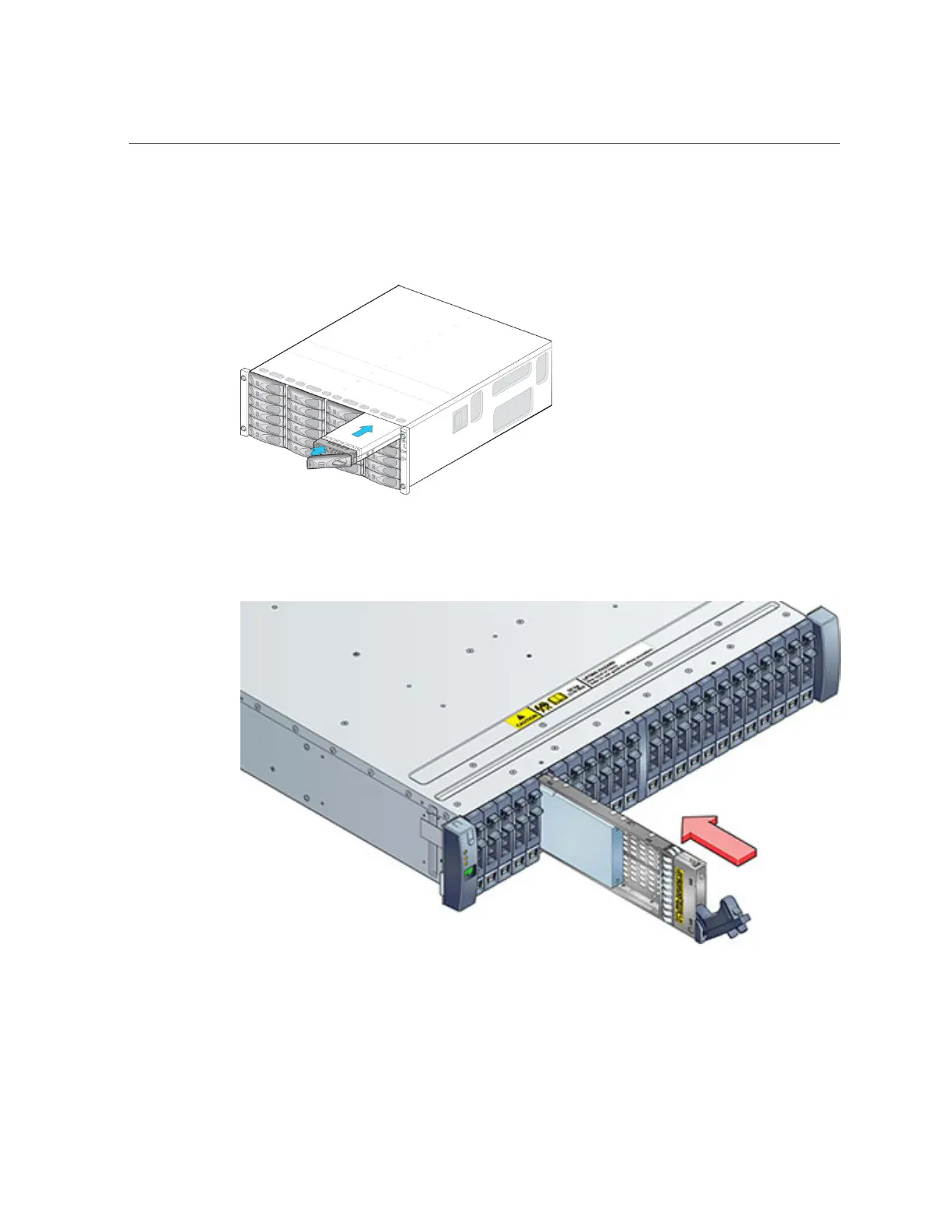

While constantly pushing toward the pivot point of the lever, slide the drive fully

into the chassis slot.

- OR -

258 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
