Replacing a Disk Shelf Power Supply

Oracle Storage Drive Enclosure DE2-24P or DE2-24C:

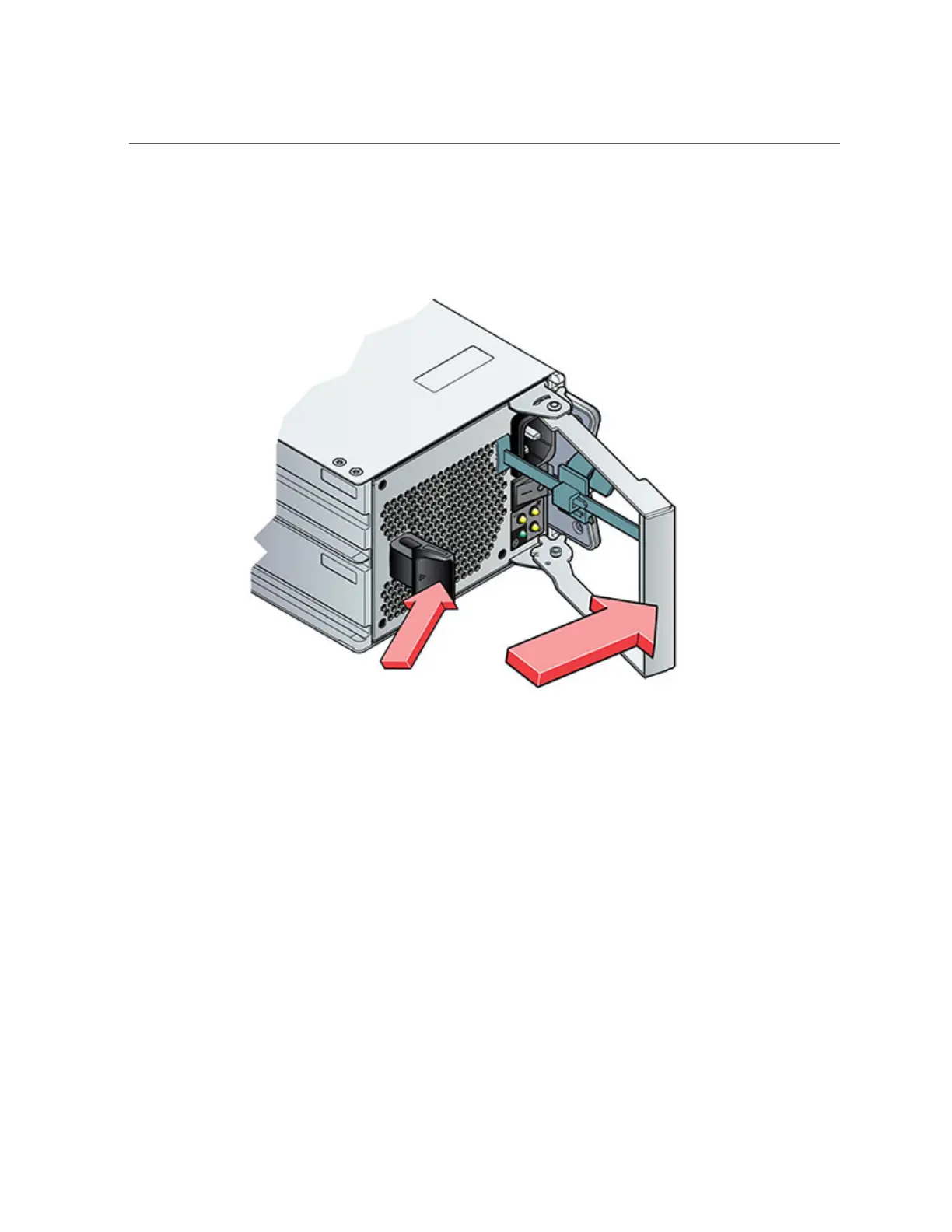

Grasp the latch and the opposite side of the module, and squeeze together to release the lever.

Sun Disk Shelf:

260 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
