Oregon 511A - Setting Vise Tilt Angle

0
4. To set right-hand cutter top-plate grind
angle, rotate vise assembly to left of center
(O
O
) (see Figure 17). (See page 15 for cor-
rect degree setting of different chain types.)
5. Setting vise-tilt angle. The cutting chain
vise assembly has a tilting feature, (see
Figure 18), that is used to control the side
plate hook angle on some chains. Use cen-
ter mark for chains requiring 90
O
(for those
chains requiring 10
O
tilt see page 15).
6. Tilt vise to INWARD position for left-
hand cutters (see Figure 19).
7. Tilt vise to OUTWARD position for right-
hand cutters (see Figure 20).
OPERATING INSTRUCTIONS
11

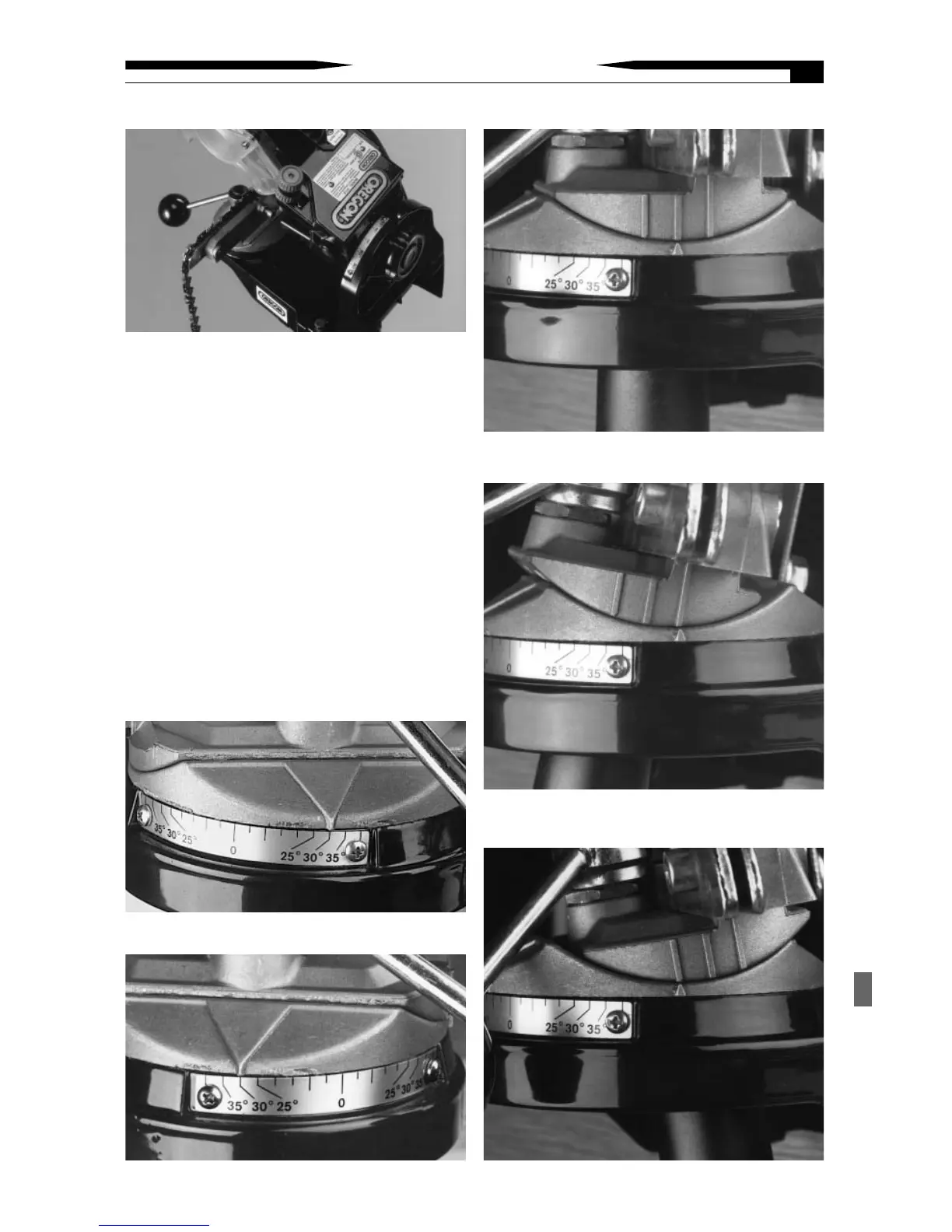

Figure 18
Figure 19
Figure 20
Figure 16
Figure 17
Figure 15
