INTRODUCTION
Refer to this page when following assembly instructions which call out a specific name
and part number.

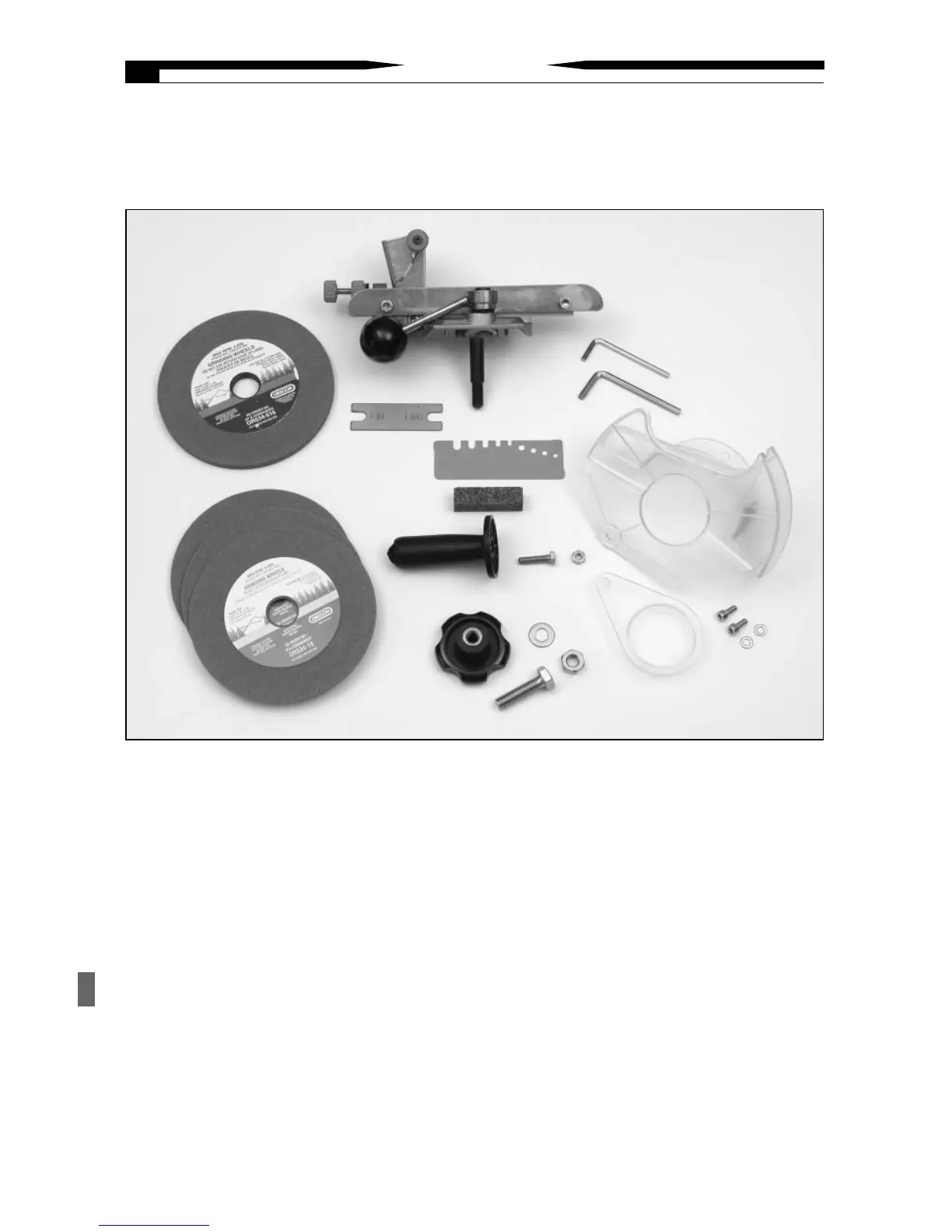

PARTS INCLUDED FOR ASSEMBLY
4
These parts are included to complete the assembly of the OREGON
®
511A, 511-BC
OREGON
®
Bench Grinder.
15.
18.
17.
16.
10.
9.
5.
1.
4.
6a.
6b.
2.
14.
8.
12.
11.
13.
3.
7.
1. Large bolt
2. Large nut
3. Large washer
4. Adjustment Knob
5. Operating handle
6a. Bolt
6b. Nut
7. Allen-head bolt
8. Allen-head bolt washer
9. Dressing brick
10. Template (511A)
11. Large 5.5 mm allen wrench
12. Small 4.5 mm allen wrench
13. Shield guard
14. Arbor shield
15. Grinding wheels 1/8", 3/16", 1/4"
511A-BC only
16. 3/4" pitch vise assembly
17. Template (3/4” pitch)
18. 5/16" wheel
