Oregon 511A - Depth Gauge Setting and Wheel Dressing

0
E. Setting the Depth Gauge:
1. Set grinder head angle at 60
O
(see Figure
28). Install the 1/4" wheel. Set vise angle
to 0
O
(see Figure 29).
2. Dressing the Wheel for Depth Gauges.
Place dressing brick #9 level on top of
chain vise, then lower the wheel onto the
grinding brick. Grind surface until shape
for wheel is parallel with chain vise (see
Figure 30).
Note: When dressing the grinding wheel,
use intermittent strokes. Using steady pres-
sure on dressing brick can cause it to burn
and shorten the life of the brick.
OPERATING INSTRUCTIONS
13

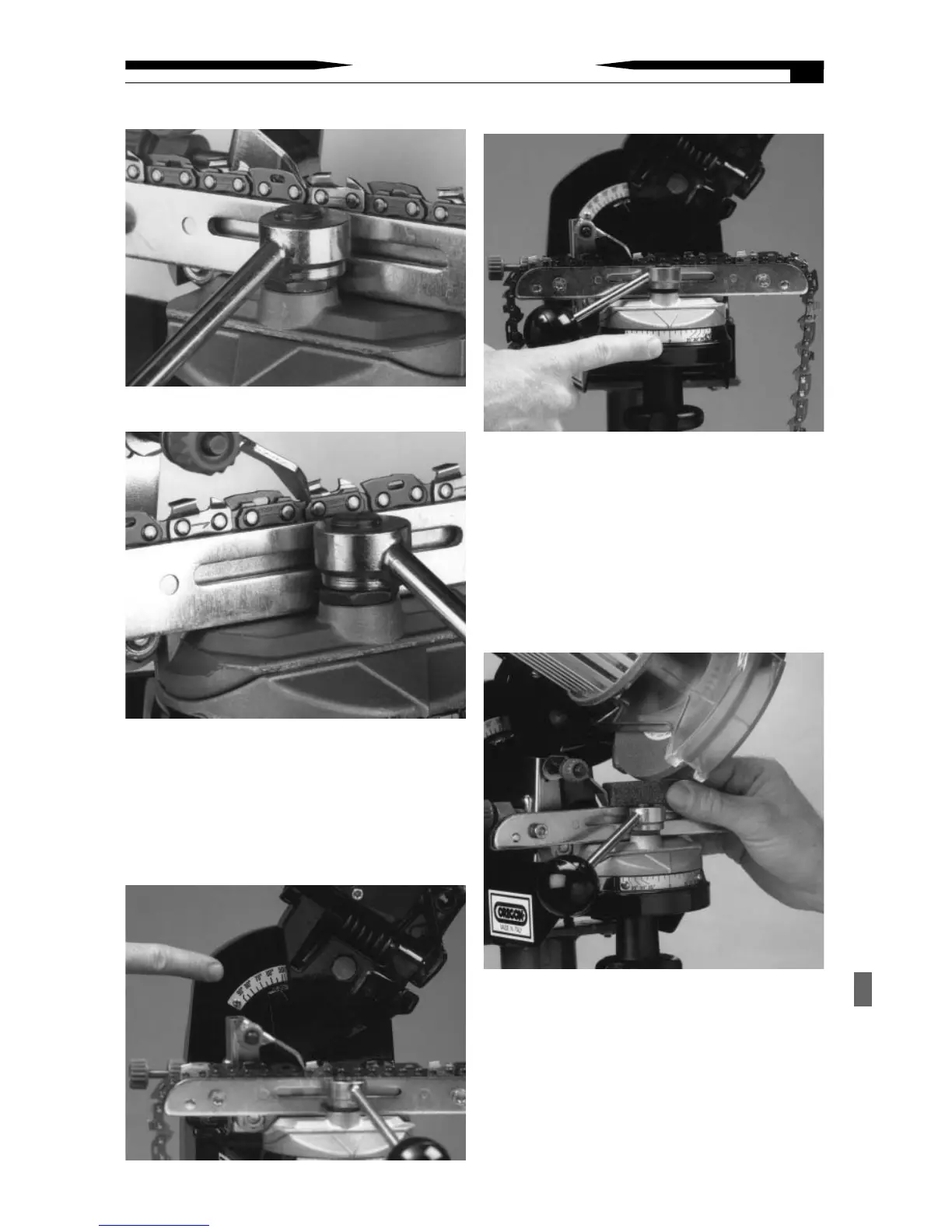

Figure 28
