SAW CHAIN
29.
SAW CHAIN
OREGON
®
CHISEL
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70511 or 70504 4.5mm round file; 5/32" round file (optional)
29192 or 16265 4.5mm Assembled File Guide or 5/32"
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90403 or 90405 Sharpening kit
FILING

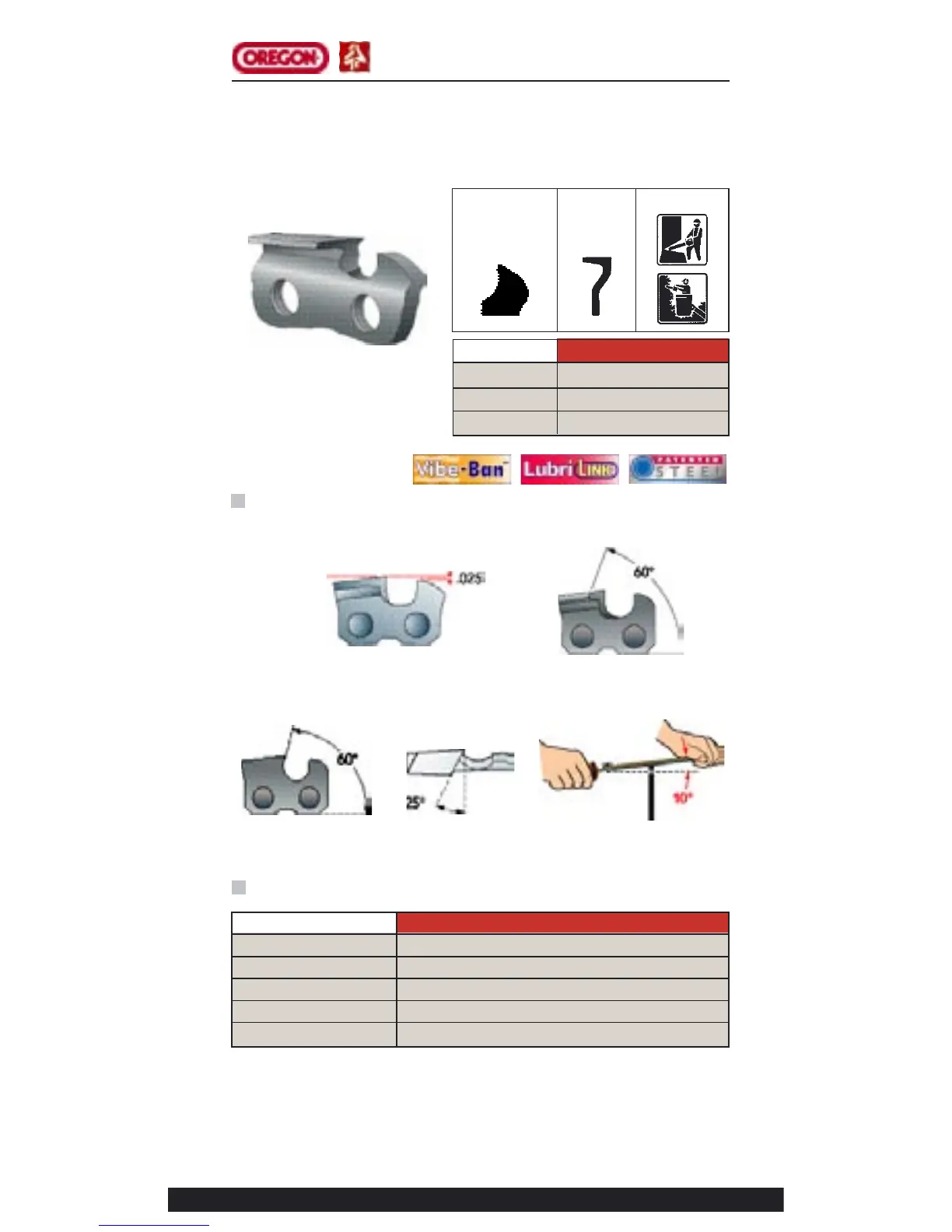

➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chain on this page is intended for use with saws up to 3.8 cu. in.
displacement (62cc), and bars up to 20 in. length (50 cm).
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
33LG .050" (1.3mm)
34LG .058" (1.5mm)
35LG .063" (1.6mm)
SUPER GUARD
®
.325"
