SAW CHAIN
SAW CHAIN
MICRO-LITE™ .325"
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70503 3/16" (4.8mm) Round File
18228 3/16" (4.8mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90407 Sharpening kit
OREGON
®
MICRO CHISEL
®
FILING

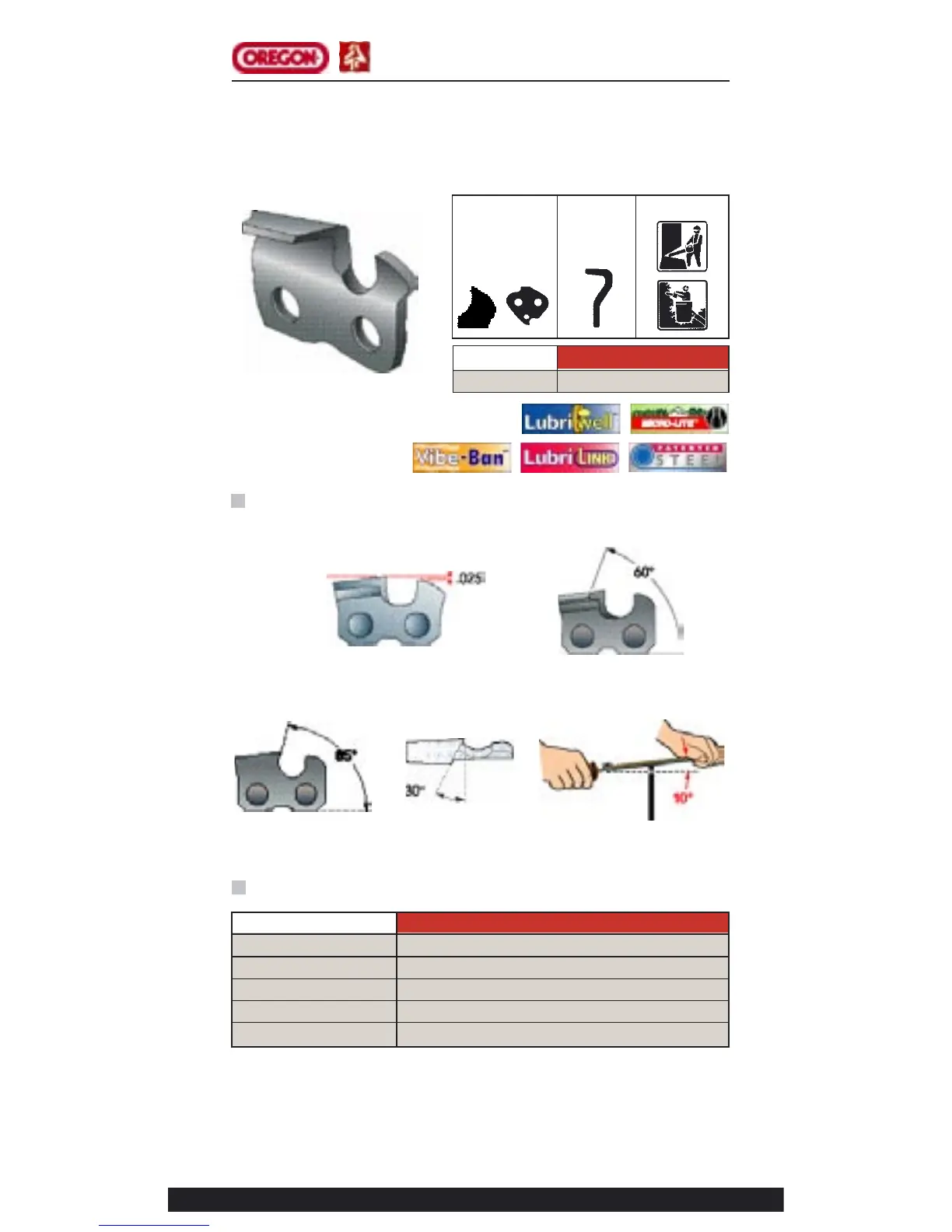

➍ TOP-PLATE FILING
ANGLE:
Kickback
Reducing
Features
End View Use
Chain on this page is intended for use with saws up to 2.8 cu. in.
displacement (45cc), and bars up to 18 in. length (45 cm).
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
95VP .050" (1.3mm)
