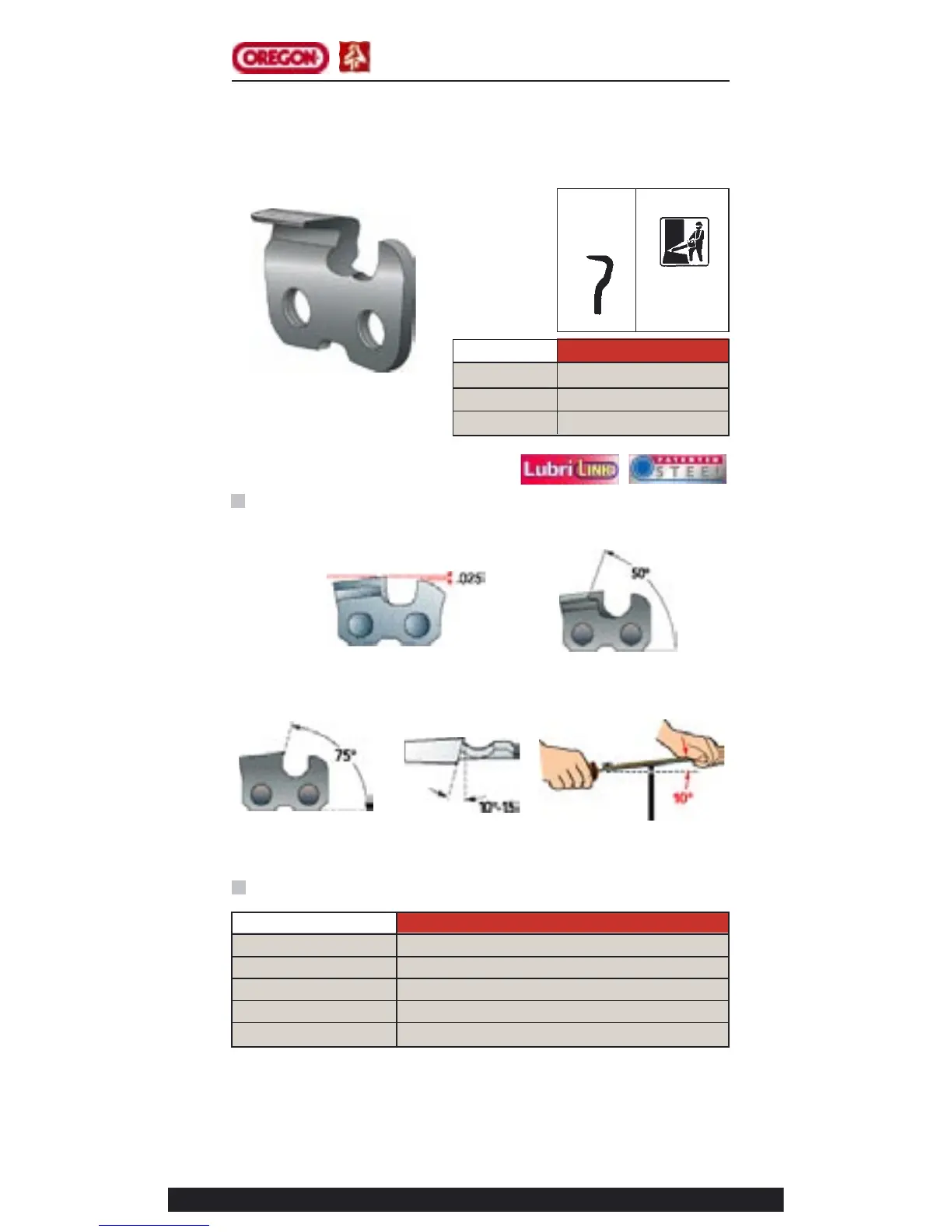

36.
SAW CHAIN
SAW CHAIN
OREGON
®
SEMI CHISEL
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70502 7/32" (5.5mm) Round File
13252 7/32" (5.5mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90404 Sharpening kit
FILING
➍ TOP-PLATE FILING
ANGLE:
End View Use
Ripping chain feature a special grind for use in ripping cuts only. Do not
use these chains for any type of cutting other than ripping.
➊ DEPTH-GAUGE
SETTING:
➋ TOP-PLATE CUTTING ANGLE:
➌ SIDE-PLATE
ANGLE:
➎ FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
72RD .050" (1.3mm)
73RD .058" (1.5mm)
75RD .063" (1.6mm)
RIPPING CHAIN 3/8"
