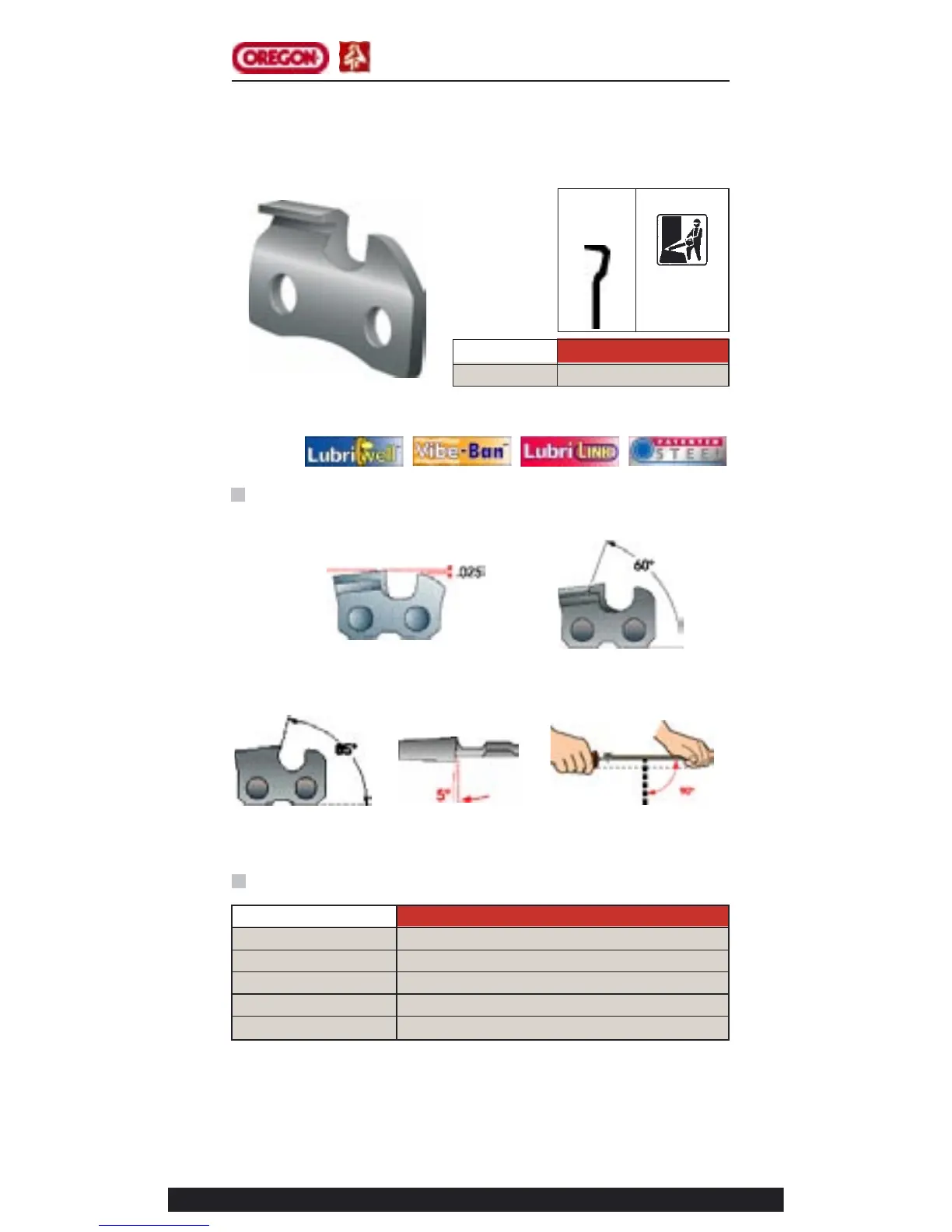

37.
SAW CHAIN
OREGON
®
CHAMFER CHISEL
Toe
TOOLS FOR FILING
PART N°. DESCRIPTION
70504 5/32" (4.0mm) Round File
16265 5/32" (4.0mm) Assembled File Guide
27530 .025" (0.64mm) Depth-gauge Tool
12211 Depth-gauge File (flat)
90405 Sharpening kit
FILING
➍
TOP-PLATE FILING
ANGLE:
End View Use
Ripping chain feature a special grind for use in ripping cuts only. Do not
use these chains for any type of cutting other than ripping.
➊
DEPTH-GAUGE
SETTING:
➋
TOP-PLATE CUTTING ANGLE:
➌
SIDE-PLATE
ANGLE:
➎
FILE-GUIDE
ANGLE
CHAIN TYPE GAUGE
91R .050" (1.3mm)
RIPPING LOW PROFILE 3/8"
